Name: Keystone KT-LED14.5T8-48GC-840-D-FDIM
Brand: Keystone Technologies
SKU: KT-LED14.5T8-48GC-840-D-FDIM
Price: 14.79 USD
Availability: InStock

Description

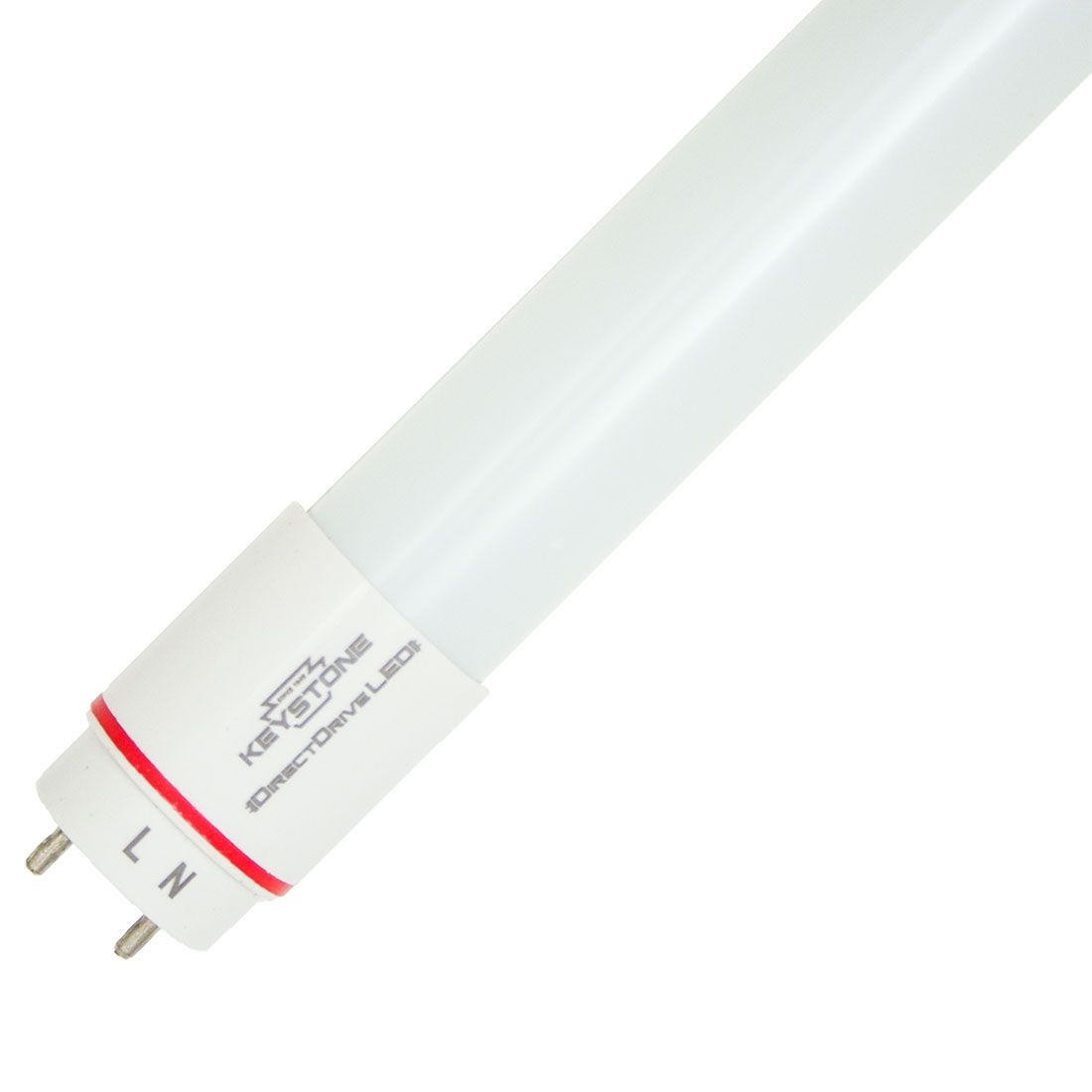

Direct Drive Dimmable 48" T8 LED Tube | Single End Wired | 4000K - Type B - Ballast Bypass

Replace your conventional T8/T12 fluorescent tubes with Keystone's 14.5 Watt dimmable T8 LED ballast bypass lamp. This lamp delivers 1,900 lumens of 4000K white light, while being approximately 40% more energy efficient than standard T8 fluorescent tubes.

Features

Installation: Type B, ballast bypass, single-end
Internal driver eliminates the need for external ballasts or drivers
Single-ended wiring method works on non-shunted sockets
Dimmable via TRIAC Dimmers (Forward Phase Control)
Frosted lens eliminates pixelation
Improved lamp durability with shatterproof coated glass
Complies with NSF standards
Suitable for use in enclosed and open fixtures
Start up instantly, no flicker or hum like conventional fluorescent tubes
Environmentally friendly, no mercury used and are easy to recycle
Base: G13, medium bi-pin
50,000 hour LED lifetime
5 year limited warranty

Downloads

Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.

Extra Information

Brand:

Keystone Technologies

UPC:

843654113227

Product Code:

KT-LED14.5T8-48GC-840-D-FDIM

Operation:

Type B | Ballast Bypass

Light Source:

LED

Wattage:

14.5 Watt

Wiring:

Dual (Single-Ended OR Double-Ended)

Color Temperature:

4000K

Base:

Medium Bi-Pin (G13)

CRI:

>83

Life Hours (Avg):

50,000

Lumens:

1900 lm

Safety Rating:

UL Listed

Dimmable:

Yes

DLC Listed:

Yes

Voltage:

120V

Pack:

Warranty:

5 Year

Size:

4 ft

Special Features:

Shatterproof

Length (in.):

47.15

Diameter (in.):

1.10
