Keystone KT-LED27PSHID-H-EX39-8CSB-D

SKU:
KT-LED27PSHID-H-EX39-8CSB-D
Typically ships in 2-3 business days* View full description
$123.25
Customer Reviews

Description

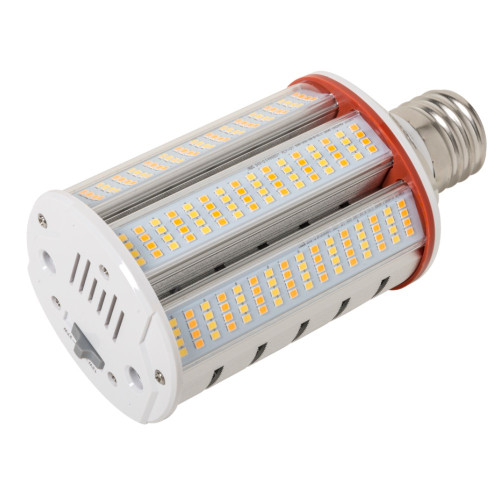

Horizontal HID LED Lamp | Power Select | Color Select | EX39 (Mogul) Base

The Power Select / Color Select series of LED HID lamps by Keystone Technologies are an excellent choice to provide long lasting, energy efficient LED illumination for your post-top or bollard application. This lamp is both wattage selectable and CCT-tunable, allowing the user to select between 3 different wattage/lumen output levels and 3 different white light color temperatures to find the right light output to suit the application. The internal driver eliminates the need for an external driver or ballast, allowing users to install this lamp directly into existing fixtures.

Features

  • Replacement for conventional metal halide lamp
  • Optimized for horizontal applications, ideal for wall pack retrofits
  • Environmentally friendly: No mercury used
  • Instant startup
  • Integral driver eliminates the need for external driver or legacy ballast; includes 4kV surge protection
  • Not for use with standard dimmers; see instructions
  • 50,000+ hour lifetime
  • Operating temperature: 30*C/-22*F - 45*C/113*F
  • Suitable for use in enclosed fixtures
  • Minimum lamp compartment dimensions: 8” x 8” x 8.7”
  • UL listed
  • IP64 rated; integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp

Downloads


Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.


Extra Information

Brand:
Keystone Technologies
UPC:
843654138886
Catalog No:
KT-LED27PSHID-H-EX39-8CSB-D
Wattage:
Selectable 27W/18W/12W
Color Temperature:
CCT Tunable (3000K/4000K/5000K)
Base:
EX39 (Mogul) Rotatable
CRI:
>80
Dimmable:
No
Life Hours:
50,000
Lumens:
Up to 4240 Lumens
Equivalent:
100 Watts
UL Listed:
Yes
Voltage:
120–277V
Warranty:
5 Year
