Description

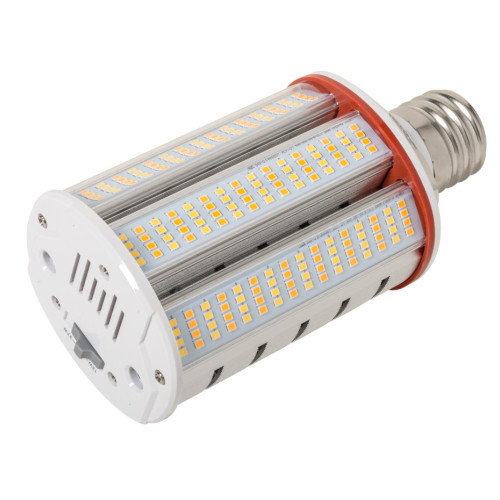

Energy Saving HID LED Retrofit | 27W | EX39 Base | Power Select | 3000K-4000K-5000K
The Keystone KT-LED27PSHID-H-EX39-8CSB-D is a high-efficiency LED replacement for 100W metal halide lamps, engineered specifically for horizontal applications, such as wall pack retrofits. Featuring Power Select and Color Select technology, this EX39 mogul base LED retrofit allows users to choose between 27W, 18W, or 12W for adjustable brightness and 3000K, 4000K, or 5000K for customizable color temperature.
Key Features:
- Optimized for Horizontal Applications: Ideal for wall pack retrofits
- Selectable Wattage: 27W / 18W / 12W
- Selectable Color Temperature: 3000K / 4000K / 5000K
- Luminous Output:
- 27W – Up to 4,240 lumens (157 lm/W)
- 18W – Up to 2,880 lumens
- 12W – Up to 1,945 lumens
- Voltage Range: 120-277V
- Base Type: EX39 (Mogul, Rotatable)
- IP64 Rated: Water-resistant for durability in various environments
- Integral Driver: No external driver or ballast needed
- Surge Protection: 4kV protection for enhanced reliability
- Long Lifespan: 50,000+ hours
- Instant Startup: Operates without warm-up delay
- UL Listed: Certified for safety and performance
- Suitable for Enclosed Fixtures: Designed to function in fully enclosed applications
Advantages:
- Designed for Horizontal Installations: Ensures optimal light distribution in wall pack and area lighting fixtures
- Customizable Power & Color Output: Selectable wattage and CCT provide flexibility for brightness and ambiance
- Energy Efficient: Saves up to 80% energy compared to metal halide lamps
- Enhanced Durability: IP64 rating ensures resistance to dust and water intrusion
- Maintenance-Free Operation: 50,000+ hour lifespan significantly reduces replacement frequency
Ideal Applications:
- Wall pack retrofits
- Security and area lighting
- Walkways and pathways
- Commercial and industrial lighting
- Fully enclosed fixtures
Technical Details:
- Model: KT-LED27PSHID-H-EX39-8CSB-D
- Base Type: EX39 (Mogul, Rotatable)
- Wattage Options: 27W / 18W / 12W
- Selectable CCT: 3000K / 4000K / 5000K
- Luminous Output: Up to 4,240 lumens
- Voltage Range: 120-277V
- CRI Rating: >80
- IP Rating: IP64 (Water-resistant)
- Dimming: Not compatible with standard dimmers
- Lifespan: 50,000+ hours
- Certifications: UL Listed
- Physical Dimensions:
- Body Length: 7.74 inches
- Illuminated Length: 4.61 inches
- Width: 3.62 inches
- Diameter: 3.23 inches
