Description
Energy Saving HID LED Retrofit | 36W | E26 Base | Power Select | 3000K/4000K/5000K

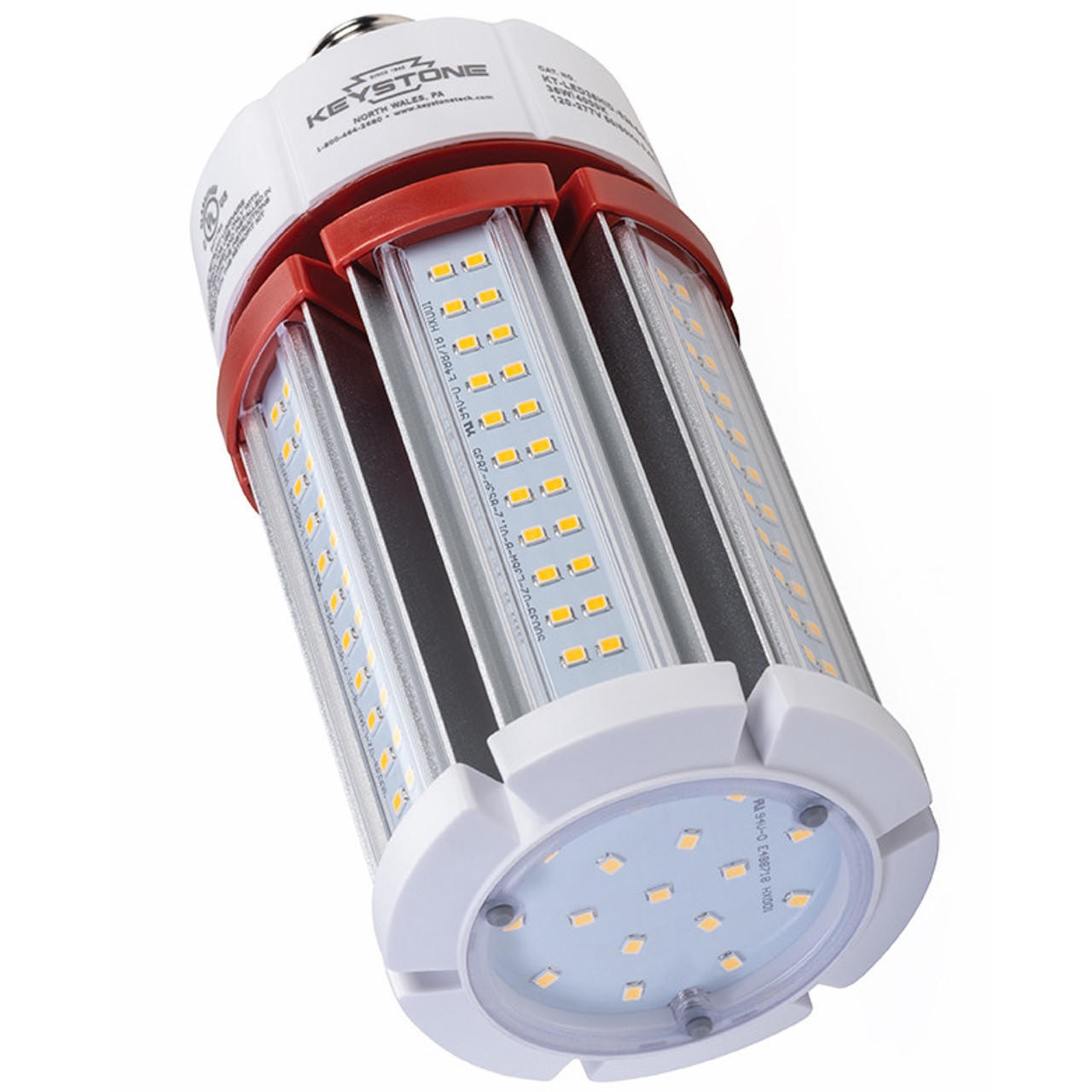

The Keystone KT-LED36PSHID-E26-8CSB-D is a high-efficiency LED replacement for 150W metal halide lamps. Designed with both Power Select and Color Select technology, this retrofit lamp offers selectable wattage options of 36W, 27W, and 18W, along with customizable color temperatures of 3000K, 4000K, or 5000K to suit various lighting needs.
Key Features:
- Selectable Wattage: 36W / 27W / 18W
- Adjustable Color Temperature: 3000K / 4000K / 5000K
- Luminous Output:
- 36W – Up to 4,860 lumens (135 lm/W) at 3000K; 5,220 lumens (145 lm/W) at 4000K; 5,040 lumens (140 lm/W) at 5000K
- 27W – Up to 3,645 lumens (135 lm/W) at 3000K; 3,915 lumens (145 lm/W) at 4000K; 3,780 lumens (140 lm/W) at 5000K
- 18W – Up to 2,430 lumens (135 lm/W) at 3000K; 2,610 lumens (145 lm/W) at 4000K; 2,520 lumens (140 lm/W) at 5000K
- Voltage Range: 120–277V
- Base Type: E26 (Medium)
- IP64 Rated: Water-resistant, ensuring durability in various environments
- Integral Driver: Eliminates the need for an external driver or ballast and includes 4kV surge protection
- Long Lifespan: 50,000+ hours for reduced maintenance
- Instant Startup: Provides immediate illumination with no warm-up delay
- UL Listed: Certified for safety and performance
- Suitable for Enclosed Fixtures: Designed to function reliably in fully enclosed applications
Advantages:
- Customizable Lighting: Selectable wattage and CCT allow tailored brightness and color output
- Energy Efficient: Offers significant energy savings compared to conventional metal halide lamps
- Durable & Reliable: IP64 rating and 50,000+ hour lifespan minimize maintenance and replacement needs
- Environmentally Friendly: Mercury-free design reduces hazardous waste
Ideal Applications:
- Post-top fixtures
- Security and area lighting
- Walkways and pathways
- Commercial and industrial installations
- Fully enclosed fixtures
Technical Details:
- Model: KT-LED36PSHID-E26-8CSB-D
- Base Type: E26 (Medium)
- Wattage Options: 36W / 27W / 18W
- Selectable CCT: 3000K / 4000K / 5000K
- Luminous Output: Up to 5,220 lumens at 36W
- Voltage Range: 120–277V
- CRI Rating: >80
- IP Rating: IP64
- Dimming: Dimming functions only with sensor-based controls (not with standard dimmers)
- Lifespan: 50,000+ hours
- Certifications: UL Listed
- Physical Dimensions:
- Body Length: 7.90 inches
- Illuminated Length: 3.87 inches
- Diameter: 3.30 inches
