Description
Metal Halide HID Retrofit | 36W Max | 120-277V | EX39 Base | Cool White | Wattage Selectable

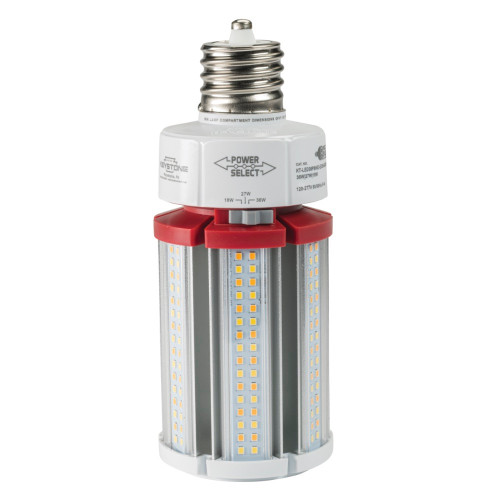

Keystone KT-LED36PSHID-EX39-840-D /G4 is a power-selectable HID LED replacement lamp designed for commercial and industrial lighting applications. This lamp offers adjustable wattages of 36W, 27W, or 18W and delivers up to 5,040 lumens at 4000K cool white. Featuring an IP64 rating, integrated heat sink, and 4kV surge protection, it is ideal for enclosed fixtures and harsh environments. The EX39 mogul base allows for easy retrofit installation in existing HID fixtures.
Features
- Selectable Wattage: 36W / 27W / 18W
- Lumen Output: Up to 5,040 lumens at 36W
- Voltage Range: 120-277V universal input
- Base Type: EX39 Mogul Base
- CCT: 4000K (Cool White)
- CRI: 80+
- Power Factor: ≥ 0.90
- Beam Angle: 360° for even light distribution
- IP64 Rated: Dust and water-resistant
- Integral Driver: Eliminates need for an external ballast
- 4kV Surge Protection: Enhances reliability
- Lifespan: 50,000+ hours
Benefits
- Energy Efficient: Uses up to 75% less power than HID lamps
- Flexible Installation: EX39 base fits both E39 and EX39 sockets
- Durability: IP64-rated for outdoor and enclosed fixtures
- Adjustable Power: Selectable wattage for customized brightness
- Low Maintenance: Long lifespan reduces replacement frequency
Applications
- High bay and low bay lighting
- Post tops and area lighting
- Industrial warehouses
- Street and parking lot lighting
- Canopy and garage lighting
Product Specifications
- Model Number: KT-LED36PSHID-EX39-840-D /G4
- Input Voltage: 120-277V
- Wattage: 36W / 27W / 18W
- Luminous Output: Up to 5,040 lumens
- Beam Angle: 360°
- Base Type: EX39 (Mogul)
- Operating Temperature: -22°F to 113°F
- Surge Protection: 4kV
- Enclosed Fixture Rated: Yes
- Certifications: UL Listed, IP64 Rated
- Lifespan: 50,000+ hours
- Warranty: 5 Years
- UPC: 843654138251
