Description
150W HID Replacement - 4,860/5,220/5,040 lm - Wattage and CCT Selectable - Type B Ballast Bypass

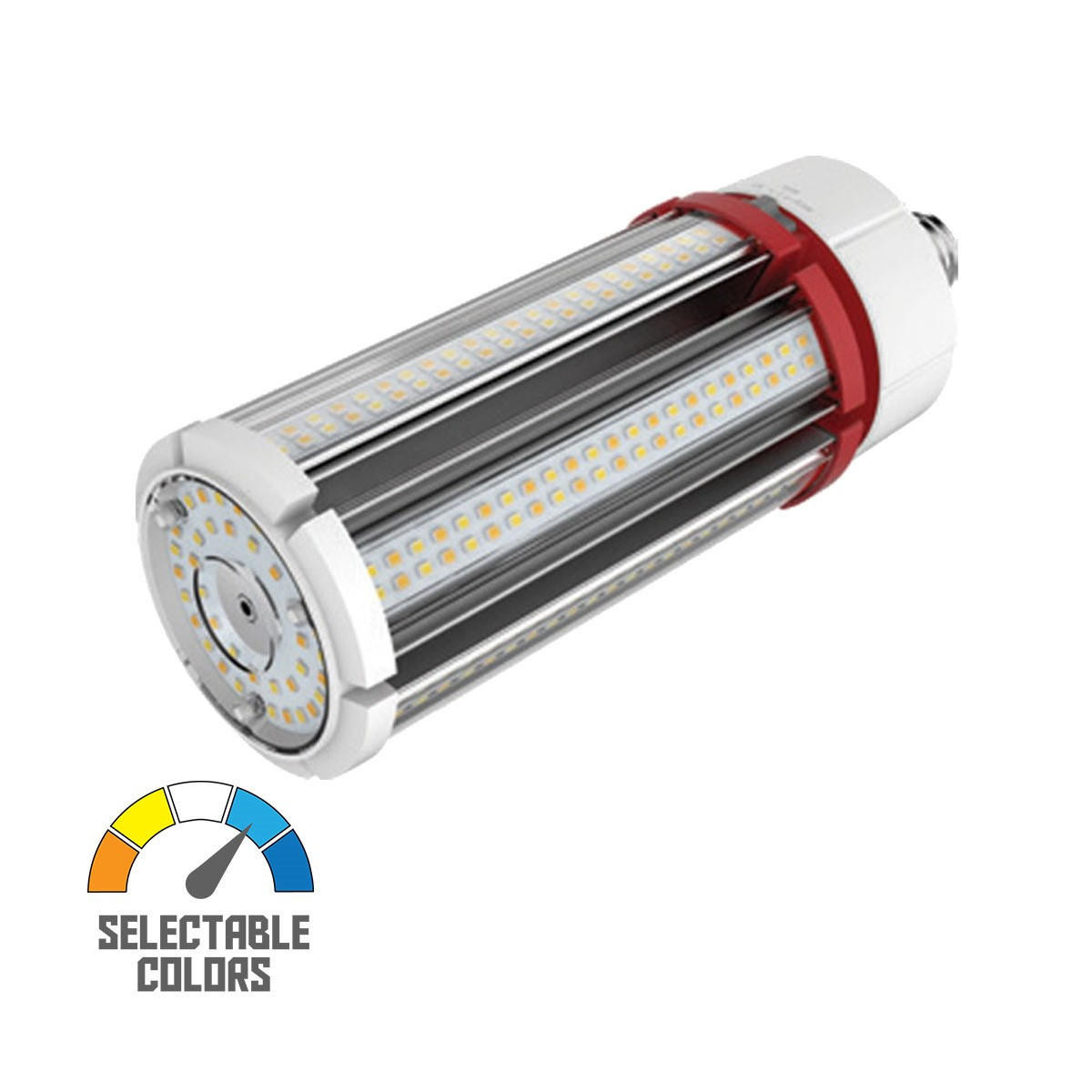

The Keystone KT-LED36PSHID-EX39-8CSB-D is a wattage-selectable LED corn bulb rated to replace compatible 150W HID lamps from an EX39 Mogul Extended base. Find compatible high wattage LED bulbs for additional options by wattage, lumen output, base and installation method.
Product Specifications
- Brand: Keystone Technologies
- Manufacturer Model: KT-LED36PSHID-EX39-8CSB-D
- Actual LED Wattage: Selectable 18W/27W/36W
- HID Replacement: 150W
- Lumen Output: Selectable 4,860/5,220/5,040 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: No
- Bulb Shape: Corn
- Diameter: 3.30 in
- Rated Life: 50,000 hours
- Warranty: 5 Year
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 150W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Compatible post-top and area-light fixtures
- Compatible wall packs and security lights
- High bays and low bays with adequate lamp clearance
- Parking lot and shoebox fixtures
Downloads
Caution
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
