Description
150W HID Replacement - 4,860/5,220/5,040 lm - Wattage and CCT Selectable - Type B Ballast Bypass

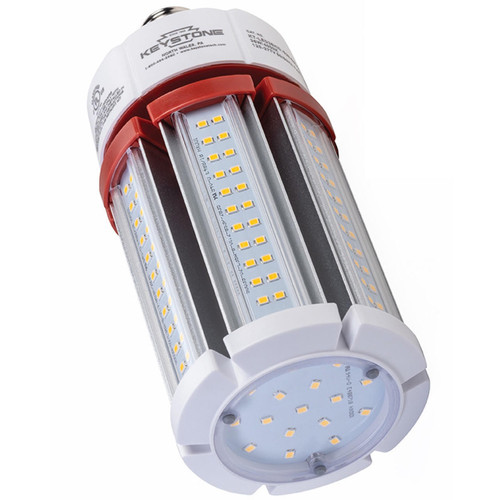

The Keystone KT-LED36PSHID-E26-8CSB-D is a wattage-selectable LED corn bulb rated to replace compatible 150W HID lamps from an E26 Medium base. Explore more HID-to-LED bulbs by replacement wattage, lumen output, base type, voltage and operation type.
Product Specifications
- Brand: Keystone Technologies
- Manufacturer Model: KT-LED36PSHID-E26-8CSB-D
- Actual LED Wattage: Selectable 18W/27W/36W
- HID Replacement: 150W
- Lumen Output: Selectable 4,860/5,220/5,040 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: E26 Medium
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: No
- Bulb Shape: Corn
- Diameter: 3.30 in
- Rated Life: 50,000 hours
- Warranty: 5 Year
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 150W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Compatible post-top and area-light fixtures
- Compatible wall packs and security lights
- High bays and low bays with adequate lamp clearance
- Parking lot and shoebox fixtures
- Enclosed fixtures where the lamp is rated for enclosed use
Downloads
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
