Description
175W Metal Halide Replacement LED Lamp | 45W/36W/27W | 120-277V | E26 Base | Color Select

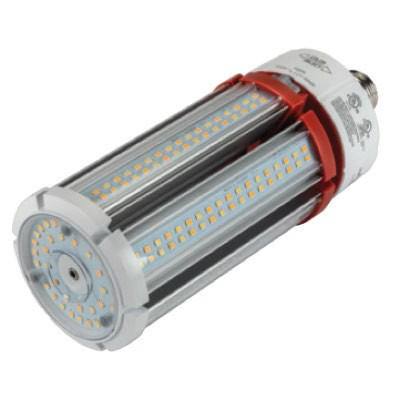

Keystone KT-LED45PSHID-E26-8CSB-D is a power selectable and color selectable HID replacement LED lamp designed to replace a conventional 175W metal halide lamp in compatible fixtures. This direct drive LED retrofit lamp uses an E26 medium base, operates on 120-277V, delivers up to 6525 lumens, and allows field selection of 45W, 36W, or 27W and 3000K, 4000K, or 5000K after the existing ballast, capacitor, and ignitor are removed.
Product Specifications
- Brand: Keystone
- Model: KT-LED45PSHID-E26-8CSB-D
- Product Type: HID replacement LED lamp
- Operation Type: Direct drive ballast bypass
- Metal Halide Equivalent: 175W
- Base Type: E26 medium
- Selectable Wattage: 45W, 36W, or 27W
- Selectable Color Temperature: 3000K, 4000K, or 5000K
- Light Appearance: Soft White, Cool White, or Daylight
- Input Voltage: 120-277V
- Lumens at 45W: 6075 lm at 3000K, 6525 lm at 4000K, 6300 lm at 5000K
- Lumens at 36W: 4860 lm at 3000K, 5220 lm at 4000K, 5040 lm at 5000K
- Lumens at 27W: 3645 lm at 3000K, 3915 lm at 4000K, 3780 lm at 5000K
- Efficacy: 135 lm/W at 3000K, 145 lm/W at 4000K, 140 lm/W at 5000K
- CRI: >80
- Input Current at 45W: 0.38A at 120V / 0.16A at 277V
- Input Current at 36W: 0.30A at 120V / 0.13A at 277V
- Input Current at 27W: 0.23A at 120V / 0.10A at 277V
- Dimmable: Dimming functions with sensors only
- Dimmer Restriction: Do not use with standard dimmers; not compatible with phase dimmers
- Driver Type: Integral driver
- Surge Protection: 4kV
- Smart Port: Low-voltage AUX port for lamp-level sensor controls
- Compatible Smart Port Accessories: Microwave sensor, PIR sensor, photocell daylight sensor, and 0-10V cable
- Rated Life: 50,000+ hours
- Operating Temperature: -40 C to 60 C
- Location Rating: IP64
- Listing: UL listed
- Fixture Rating: Suitable for use in fully enclosed fixtures
- Minimum Lamp Compartment Dimensions: 8 x 8 x 10 inches
- Body Length: 9.10 inches
- Illuminated Length: 5.07 inches
- Diameter: 3.30 inches
- Pack Quantity: 16
- Easy Code: DWL-09
- UPC: 843654128603
- Warranty: 5 years
Benefits
- Replaces conventional medium base 175W metal halide lamps with an efficient LED retrofit solution.
- Power selectable design lets contractors choose 45W, 36W, or 27W in the field.
- Color selectable design allows 3000K, 4000K, or 5000K selection from one lamp.
- Direct drive operation eliminates the existing ballast, capacitor, and ignitor from the fixture.
- E26 medium base supports compatible HID retrofit fixtures using a medium socket.
- Integral driver with 4kV surge protection helps simplify installation and improve durability.
- Instant startup provides full light output without metal halide warm-up time.
- Smart Port AUX connection supports optional lamp-level sensor controls.
- IP64 rating and integrated heat sink design support demanding retrofit applications.
- Mercury-free LED construction provides an environmentally friendly replacement option.
Applications
- 175W metal halide replacement projects
- Medium base HID retrofit applications
- Commercial HID fixture retrofits
- Post top fixtures
- Area lighting fixtures
- Wall packs and exterior fixtures with proper lamp compartment size
- Warehouse and maintenance lighting
- Facility lighting upgrades
