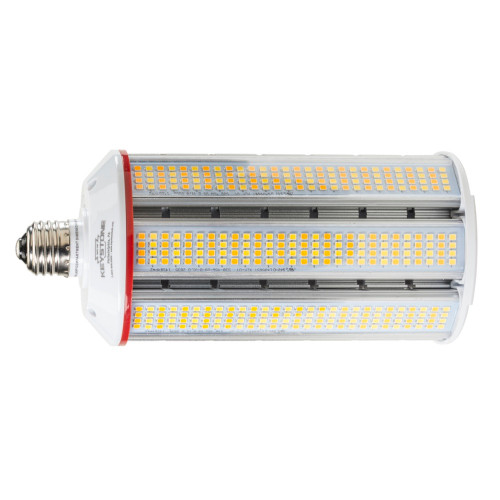

Keystone KT-LED45PSHID-H-EX39-8CSB-D

SKU:
KT-LED45PSHID-H-EX39-8CSB-D
Typically ships in 2-3 business days* View full description
$97.44
Customer Reviews

Description

Horizontal HID LED Lamp | Power Select | Color Select | EX39 (Mogul) Base

Keystone LED horizontal luminaires are the optimal LED lamps for upgrading metal halide canopy and parking lot light fixtures from HID. These lamps help ensure parking lot lights remain well illuminated and safe, without the large energy consumption of metal halide fixtures. Horizontal lamps are also ideal for high bay fixtures, providing an economical way to upgrade lighting and energy efficiency. Xpander lamps are designed for hard-to-fit shoebox and wall pack light fixtures. Swing out the two sides and the resulting beam angle is focused in one direction. All lamps have a rotating base that allows the lamp to be positioned as needed, targeting light exactly where you want it, even if you don’t have a reflection shield. And all are equipped with Keystone’s Power Select and Color Select technology, which allows users to select from multiple power outputs and color temperatures with the touch of a switch. These energy-saving lamps are DLC listed, too.

Features

  • Replacement for conventional metal halide lamp
  • Optimized for horizontal applications, ideal for wall pack retrofits
  • Environmentally friendly: No mercury used
  • Instant startup
  • Integral driver eliminates the need for external driver or legacy ballast; includes 4kV surge protection
  • Not for use with standard dimmers; see instructions
  • 50,000+ hour lifetime
  • Operating temperature: 30*C/-22*F - 45*C/113*F
  • Suitable for use in enclosed fixtures
  • Minimum lamp compartment dimensions: 8” x 8” x 8.7”
  • UL listed
  • IP64 rated; integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp

Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.


Extra Information

Brand:
Keystone Technologies
UPC:
843654138909
Catalog No:
KT-LED45PSHID-H-EX39-8CSB-D
Wattage:
Selectable 45W/36W/27W
Color Temperature:
CCT Tunable (3000K/4000K/5000K)
Base:
EX39 (Mogul) Rotatable
CRI:
>80
Dimmable:
No
Life Hours:
50,000
Lumens:
Up to 6975 Lumens
Equivalent:
175 Watts
UL Listed:
Yes
Voltage:
120–277V
Warranty:
5 Year
