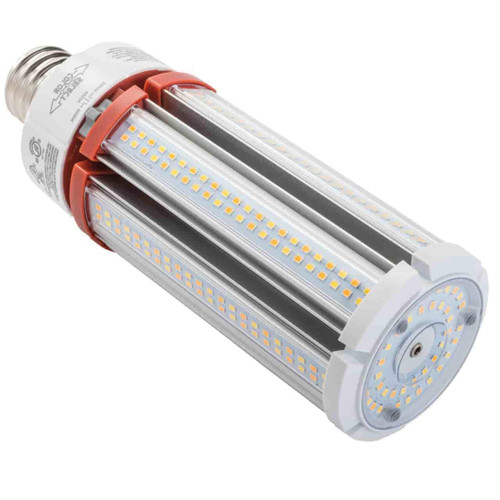

250W Metal Halide Replacement LED Lamp | 63W/54W/45W | 120-277V | EX39 Base | Color Select
Keystone KT-LED63PSHID-EX39-8CSB-D is a power selectable and color selectable HID replacement LED lamp designed for compatible post top, high bay, low bay, wall pack, and commercial HID retrofit fixtures. This direct drive LED lamp replaces a conventional 250W metal halide lamp, uses an EX39 mogul base, operates on 120-277V, delivers up to 9035 lumens, and allows field selection of 63W, 54W, or 45W and 3000K, 4000K, or 5000K after the existing ballast, capacitor, and ignitor are removed.
Product Specifications
- Brand: Keystone
- Model: KT-LED63PSHID-EX39-8CSB-D
- Product Type: Post top LED replacement lamp / HID replacement LED lamp
- Operation Type: Direct drive ballast bypass
- Metal Halide Equivalent: 250W
- Base Type: EX39 mogul
- Socket Compatibility: EX39-based lamps work in both E39 and EX39 sockets
- Selectable Wattage: 63W, 54W, or 45W
- Selectable Color Temperature: 3000K, 4000K, or 5000K
- Light Appearance: Soft White, Cool White, or Daylight
- Input Voltage: 120-277V
- Lumens at 63W: 8505 lm at 3000K, 9035 lm at 4000K, 8820 lm at 5000K
- Lumens at 54W: 7290 lm at 3000K, 7830 lm at 4000K, 7560 lm at 5000K
- Lumens at 45W: 6075 lm at 3000K, 6525 lm at 4000K, 6300 lm at 5000K
- Efficacy: 135 lm/W at 3000K, 145 lm/W at 4000K, 140 lm/W at 5000K
- CRI: >80
- Input Current at 63W: 0.53A at 120V / 0.23A at 277V
- Input Current at 54W: 0.45A at 120V / 0.19A at 277V
- Input Current at 45W: 0.38A at 120V / 0.16A at 277V
- Dimmable: Dimming functions with sensors only
- Dimmer Restriction: Do not use with standard dimmers; not compatible with phase dimmers
- Driver Type: Integral driver
- Surge Protection: 4kV
- Smart Port: Low-voltage AUX port for lamp-level sensor controls
- Compatible Smart Port Accessories: Microwave sensor, PIR sensor, photocell daylight sensor, and 0-10V cable
- Rated Life: 50,000+ hours
- Operating Temperature: -40 C to 60 C
- Location Rating: IP64
- Listing: UL listed
- DLC Listed: Yes
- Fixture Rating: Suitable for use in fully enclosed fixtures
- Minimum Lamp Compartment Dimensions: 8 x 8 x 11.7 inches
- Body Length: 10.50 inches
- Illuminated Length: 5.66 inches
- Diameter: 3.30 inches
- Pack Quantity: 16
- Easy Code: ZAV-57
- UPC: 843654128849
- Warranty: 5 years
Benefits
- Replaces conventional 250W metal halide lamps with an efficient LED retrofit solution.
- Post top replacement lamp wording helps customers identify it for HID post top fixture retrofits.
- Power selectable design lets contractors choose 63W, 54W, or 45W in the field.
- Color selectable design allows 3000K, 4000K, or 5000K selection from one lamp.
- Direct drive operation eliminates the existing ballast, capacitor, and ignitor from the fixture.
- EX39 mogul base works in both E39 and EX39 sockets for broader retrofit compatibility.
- Integral driver with 4kV surge protection helps simplify installation and improve durability.
- Instant startup provides full light output without metal halide warm-up time.
- Smart Port AUX connection supports optional lamp-level sensor controls.
- IP64 rating and integrated heat sink design support demanding HID retrofit applications.
Applications
- Post top HID replacement lighting
- 250W metal halide replacement projects
- Mogul base HID retrofit applications
- Commercial HID fixture retrofits
- High bay fixtures with proper lamp compartment size
- Low bay fixtures with proper lamp compartment size
- Wall packs and exterior fixtures with proper lamp compartment size
- Warehouse and facility lighting upgrades
