Keystone KT-LED63PSHID-H-EX39-8CSB-D

SKU:
KT-LED63PSHID-H-EX39-8CSB-D
Keystone Technologies Keystone KT-LED63PSHID-H-EX39-8CSB-D
$224.00
Typically ships in 2-3 business days* View full description
Customer Reviews

Description

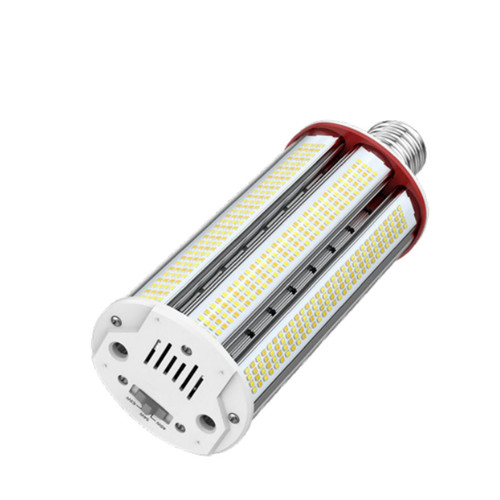

Horizontal HID LED Lamp | Power Select | Color Select | EX39 (Mogul) Base

The Keystone Direct Drive LED Series corn cob lamps with dedicated color temperatures also feature Power Select technology are an excellent choice to provide long lasting, energy efficient LED illumination for your post-top or bollard application.The Keystone KT-LED63PSHID-H-EX39-8CSB-D Mogul base LED corncob lights are designed to be more efficient than Metal Halide bulbs. This LED corn bulb offers 3 wattages of 63/54/45W and Selectable Color Temperature 3000K/4000K/5000K to emit 6750 - 9575 lumens and replaces up to 250W MH Equal lamps. The integral driver eliminates the need for external driver or legacy ballast.

Features

  • Replacement for conventional metal halide lamp
  • Optimized for horizontal applications, ideal for wall pack retrofits
  • Environmentally friendly: No mercury used
  • Instant startup
  • Integral driver eliminates the need for external driver or legacy ballast; includes 4kV surge protection
  • Not for use with standard dimmers; see instructions
  • 50,000+ hour lifetime
  • Operating temperature: 30*C/-22*F - 45*C/113*F
  • Suitable for use in enclosed fixtures
  • Minimum lamp compartment dimensions: 8” x 8” x 8.7”
  • UL listed
  • IP64 rated; integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp

Downloads


Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.


Extra Information

Brand:
Keystone Technologies
UPC:
843654138916
Catalog No:
KT-LED63PSHID-H-EX39-8CSB-D
Wattage:
Selectable 63W/54W/45W
Color Temperature:
CCT Tunable (3000K/4000K/5000K)
Base:
EX39 (Mogul) Rotatable
CRI:
>80
Dimmable:
No
Life Hours:
50,000
Lumens:
Up to 9575 Lumens
Equivalent:
250 Watts
UL Listed:
Yes
Voltage:
120–277V
Warranty:
5 Year
