Description
250W HID Replacement - 10,800/11,600/11,200 lm - Wattage and CCT Selectable - Type B Ballast Bypass

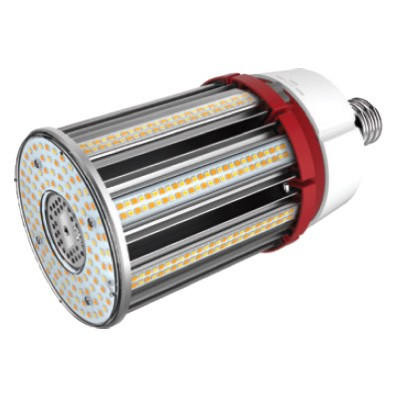

The Keystone KT-LED80PSHID-EX39-8CSB-D is a wattage-selectable LED corn bulb rated to replace compatible 250W HID lamps from an EX39 Mogul Extended base. See additional high-output LED bulbs by replacement wattage, lumen output, base type, voltage and operation type.
Product Specifications
- Brand: Keystone Technologies
- Manufacturer Model: KT-LED80PSHID-EX39-8CSB-D
- Actual LED Wattage: Selectable 54W/63W/80W
- HID Replacement: 250W
- Lumen Output: Selectable 10,800/11,600/11,200 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: No
- Bulb Shape: Corn
- Diameter: 5.00 in
- Rated Life: 50,000 hours
- Warranty: 5 Year
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 250W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Compatible post-top and area-light fixtures
- Compatible wall packs and security lights
- High bays and low bays with adequate lamp clearance
- Parking lot and shoebox fixtures
Downloads
Caution
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
