24" F17T8/835 Fluorescent Replacement | Ballast Bypass | Neutral White | BAA & TAA Compliant

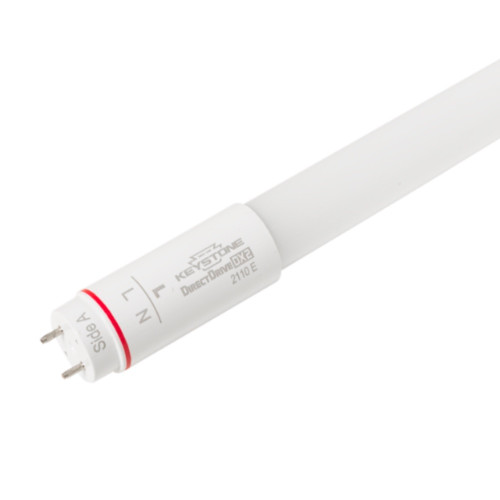

The Keystone KT-LED9T8-24G-835-DX2 /USA is a high-efficiency 9W T8 LED tube, designed to replace conventional 2-foot fluorescent lamps with improved energy savings and performance. This Made in USA, BAA & TAA-compliant LED tube operates on single- or double-ended line voltage (120-277V) with no ballast required, delivering 3500K neutral white illumination for commercial and industrial applications.
Key Features:
- Energy Efficient: Uses 9W to replace standard fluorescent T8 lamps
- Color Temperature: 3500K (Neutral White)
- Luminous Output: 1,100 lumens (122 lm/W)
- Base Type: G13 (Medium Bi-Pin)
- Voltage Range: 120-277V
- Beam Angle: 240° for wide light distribution
- Ballast Bypass Installation: Operates on direct line voltage with single- or double-ended wiring
- Frosted Lens: Eliminates glare and pixelation
- Dimmable Compatibility: Works with select dimming accessories (sold separately)
- Long Lifespan: 50,000+ hours for reduced maintenance
- UL Classified: Certified for safety and retrofit applications
- BAA & TAA Compliant: Approved for government and federal projects
Advantages:
- 40% More Energy Efficient: Compared to standard F32T8 fluorescent lamps
- Environmentally Friendly: Mercury-free and RoHS compliant
- Instant Startup: No warm-up delay for immediate full brightness
- Made in the USA: BAA & TAA compliant for government and commercial projects
Ideal Applications:
- Office buildings
- Schools and universities
- Warehouses and industrial spaces
- Retail stores
- Hospitals and healthcare facilities
Technical Details:
- Model: KT-LED9T8-24G-835-DX2 /USA
- Base Type: G13 (Medium Bi-Pin)
- Wattage: 9W
- Color Temperature: 3500K (Neutral White)
- Luminous Output: 1,100 lumens
- Voltage Range: 120-277V
- CRI Rating: >83
- Beam Angle: 240°
- Dimming: Compatible with select dimming accessories (sold separately)
- Lifespan: 50,000+ hours
- Certifications: UL Classified, DLC Listed, FCC Compliant
- Operating Temperature: -20°C to 45°C (-4°F to 113°F)
- Nominal Length: 24 inches
