Description
1 × F32T8 Replacement Ballast | 120V | Normal Power Factor | Rapid Start

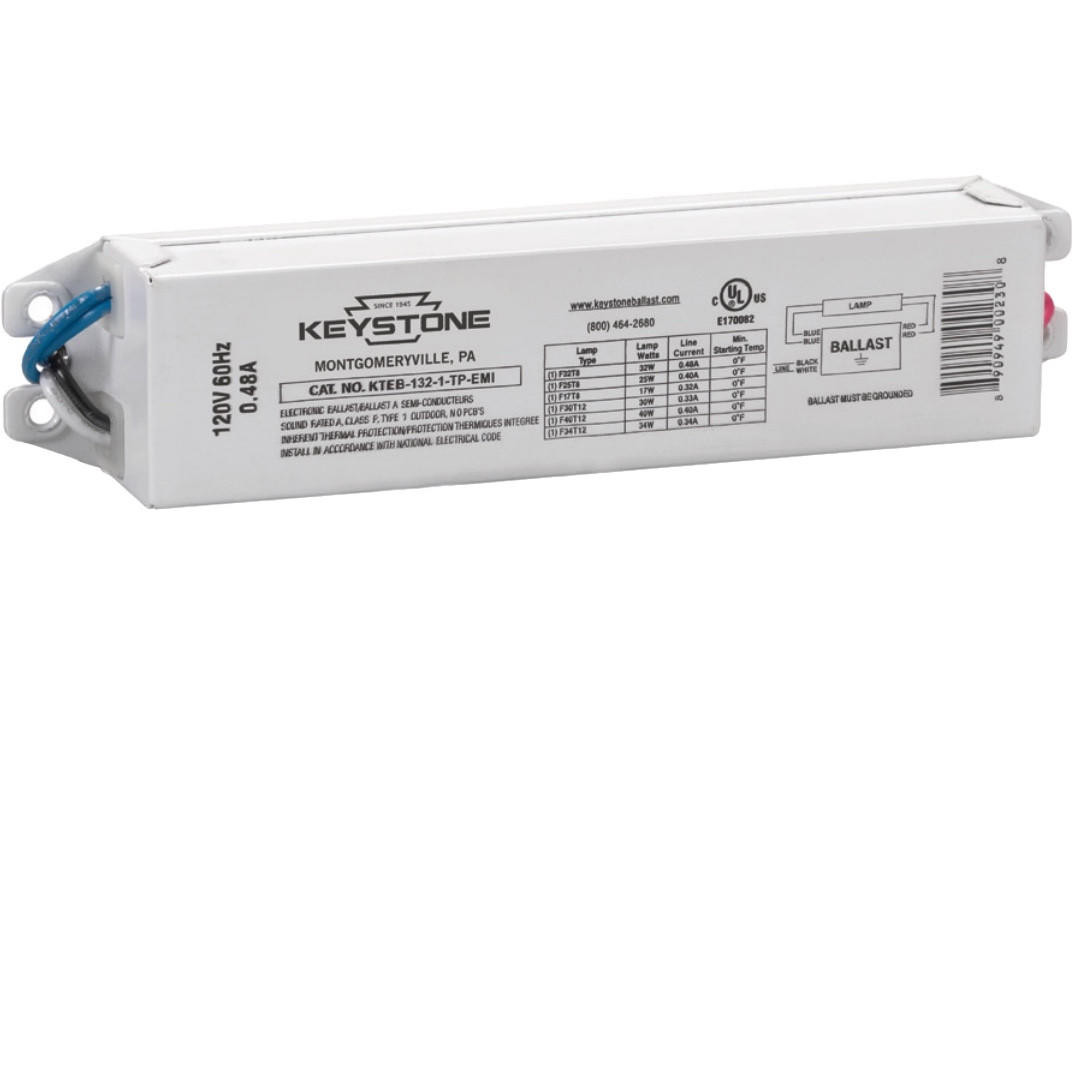

Keystone Technologies KTEB-132-1-TP-EMI is a T8 electronic replacement ballast designed to operate one F32T8 lamp at 120V. This rapid-start ballast features normal ballast factor, EMI suppression, and lamp end-of-life protection, making it suitable for commercial fluorescent lighting retrofits and maintenance replacements. It uses a long-case housing and is thermally protected for reliable operation.
Features
- Operates 1 F32T8 lamp
- Input voltage: 120VAC ±10%
- Rapid start electronic ballast
- Normal ballast factor
- Sound rated A
- EMI suppressed (FCC Part 18 Class B compliant)
- Lamp end-of-life protection
- Thermally protected design
Benefits
- Reliable fluorescent replacement ballast for commercial fixtures
- Quiet operation suitable for offices and retail spaces
- Protects lamps at end of life to reduce failures
- Long-case form factor for standard fixture compatibility
Applications
- Commercial offices
- Retail lighting fixtures
- Schools and institutional buildings
- General indoor fluorescent lighting retrofits
Product Specifications
- Brand: Keystone Technologies
- Model: KTEB-132-1-TP-EMI
- Lamp Type: F32T8 (also supports F25T8, F17T8, F15T8, select T12 lamps)
- Number of Lamps: 1
- Input Voltage: 120V
- Input Frequency: 60 Hz
- Starting Method: Rapid Start
- Ballast Factor: Normal
- Power Factor: Normal (NPF)
- Sound Rating: A
- Minimum Starting Temperature: 0°F (-18°C)
- Maximum Case Temperature: 167°F (75°C)
- Case Style: L7
- Case Dimensions: 6.46" L × 1.32" W × 1.00" H
- Mounting Distance: 6.00"
- Warranty: 3 Years
