Description

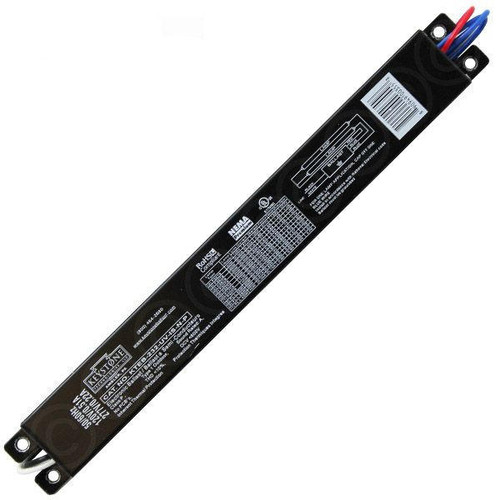

2 x F32T8 Replacement Ballast | 120-277V | High Power Factor | Instant Start | Normal Ballast Factor
Keystone KTEB-232-UV-IS-N-P is a multi-voltage T8 electronic replacement ballast designed to operate up to two F32T8 lamps on 120-277V input. This instant start ballast features parallel lamp connection, high power factor performance, normal ballast factor, anti-striation circuitry, and a steel case for commercial fluorescent lighting replacement applications.
Product Specifications
- Brand: Keystone
- Model: KTEB-232-UV-IS-N-P
- Product Type: T8 electronic ballast
- Lamp Type: F32T8
- Number of Lamps: 2 lamps
- Starting Method: Instant Start
- Lamp Connection: Parallel
- Input Voltage: 120-277VAC +/- 10%
- Input Frequency: 50/60 Hz
- Power Factor: High, greater than 0.90
- Ballast Factor: Normal
- Ballast Factor for 2 x F32T8 at 120V: 0.88
- Ballast Factor for 2 x F32T8 at 277V: 0.88
- Input Watts for 2 x F32T8 at 120V: 54.4W
- Input Watts for 2 x F32T8 at 277V: 53.5W
- Nominal Line Amps for 2 x F32T8 at 120V: 0.48A
- Nominal Line Amps for 2 x F32T8 at 277V: 0.21A
- Max THD: 10%
- Crest Factor: Less than 1.70
- Minimum Start Temperature: 0F / -18C
- Max Output Voltage: 600V
- Max Voltage to Ground: 600V
- Sound Rating: A
- Case Material: Steel
- Case Style: L4
- Case Dimensions: 9.50 in. L x 1.30 in. W x 1.18 in. H
- Mounting Length: 9.00 in.
- Lead Wires: 18 AWG, 105C/600V, solid copper
- Standard Lead Lengths: Black 25 in., White 25 in., Blue 31 in., Red 45 in.
- Certifications: UL Listed, UL Listed Class P, Type 1 Outdoor
- Compliance: 2014 DOE Compliant, RoHS Compliant, FCC Part 18 Class A Non-Consumer Limits, ANSI C82.11 and C62.41
- Warranty: 5 years
- Pack Quantity: 10
- UPC: Cannot Source
Benefits
- Operates two F32T8 lamps, making it a practical replacement ballast for common commercial fluorescent fixtures.
- 120-277V multi-voltage input supports a wide range of commercial and institutional electrical systems.
- Instant start operation provides quick lamp startup without preheating.
- Parallel lamp connection helps simplify replacement in compatible T8 fluorescent fixtures.
- High power factor design supports efficient electrical performance in commercial lighting applications.
- Anti-striation circuitry helps improve lamp performance and reduce visible lamp striations.
- Steel case construction supports durable ballast replacement in demanding environments.
Applications
- Commercial fluorescent fixture repair
- Office lighting
- School and institutional lighting
- Retail fluorescent lighting
- Warehouse and stockroom lighting
- Maintenance replacement ballast inventory
- 2 lamp F32T8 fluorescent troffers and strip fixtures
