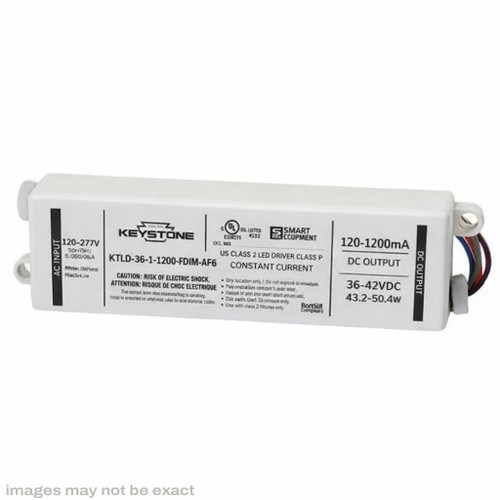

Keystone KTLD-36-1-1200-FDIM-AF6 - 36W 1200mA - Forward Phase Dimming LED Driver

Have a product question?Ask us
SKU:
KTLD-36-1-1200-FDIM-AF6
$22.89
Customer Reviews

Description

36W Constant Current LED Driver | 1200mA Output | 120V Input | Forward Phase Dimming | Replacement Power Supply

Keystone KTLD-36-1-1200-FDIM-AF6 is a 36-watt constant current LED driver designed for commercial and industrial LED lighting applications. This driver features forward phase dimming and delivers 1200mA output at 18–30V. With a 120V input, a compact case, and built-in protection features, it is ideal for both new installations and as a replacement driver.

  • 36W maximum output, 1200mA constant current
  • Output voltage range: 18–30V
  • Input voltage: 120V AC ±10%, 50/60Hz
  • Forward Phase Dimming (Triac/Leading Edge)
  • High efficiency (up to 83%)
  • Power Factor: >0.9 under full load
  • Protection: Over-voltage, over-current, short-circuit (hiccup mode)
  • 5-year warranty
  • UL 8750 Type HL, Class 2, FCC, CE compliant

Product Specifications

  • Model: Keystone KTLD-36-1-1200-FDIM-AF6
  • Current Type: Constant Current
  • Wattage: 36W
  • Output Current: 1200mA
  • Output Voltage: 18–30V
  • Input Voltage: 120V AC ±10%
  • Dimming Type: Forward Phase (Triac)
  • Power Factor: >0.9
  • Size: 6.61" x 1.18" x 0.74" (L x W x H)
  • Dimmable: Yes
  • Warranty: 5 Years
  • Certifications: UL 8750, Type HL, Class 2, FCC, CE
  • IP Rating: Not specified (for dry/damp location)
  • MTBF: 381,000 hours at 40°C ambient

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.

Non-Returnable Item Notice:

Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.

Extra Information

Brand:
Keystone Technologies
UPC:
890949012505
Catalog No:
KTLD-36-1-1200-FDIM-AF6
Ballast Type:
LED Driver
Light Source:
LED
Current Type:
Fixed
Driver Type:
Constant Current
Min Output Current:
1200mA
Max Output Current:
1200mA
Min Output Voltage:
20V
Max Output Voltage:
36V
Min Input Voltage:
120V
Dimmable:
Yes
Max Input Voltage:
277V
Size:
6.46x2.68x1.26 inches
Power Factor (Efficiency):
>0.9
Total Wattage:
36 Watt
Input Voltage:
120Vac ± 10%
Output Voltage:
10-18V
Input Frequency:
50/60 Hz
Output Current:
1200mA
Typical Efficiency at 120V:
81%
Dimming Type:
0-10V
Warranty:
5 Years
