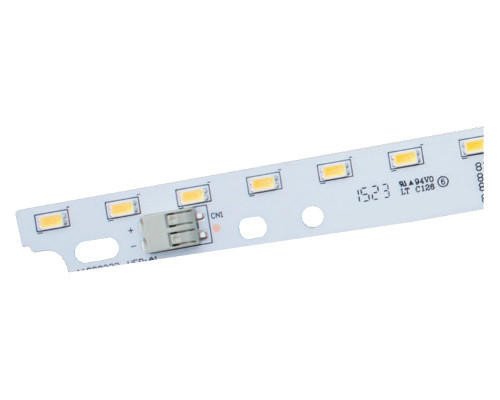

Keystone KTLM-22L-560-24-8-3000 SL Series Linear Modules

SKU:
KTLM-22L-560-24-830
$10.61
Customer Reviews

Description

3000K - Linear - 13.2W - 560mA - >80 - Parallel Connection

Product Features

  • For Use in Class 2 Lighting Systems
  • Highly Reflective White Soldermask
  • (2) Low Profile WAGO 2060 2 Pole Push Connectors per Module
  • UL Recognized Components
  • Single-Sided FR4 Substrate
  • 3.5-Step MacAdam Color Binning
  • 90 CRI modules have a nominal 900 lumens/foot
  • Reported L70 >= 54,000 hours @ < 85ºC/185ºF
  • Calculated L70 >=87,000 hours @ <85ºC/185ºF
  • Maximum Board Temperature at Tc Point: 85ºC/185ºF

Downloads


Data Sheet

Disclaimers

*This product typically ships in 1 to 2 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 3 business days to ship.





Extra Information

Brand:
Keystone Technologies
MODULE TYPE:
Linear
MAX MODULE POWER:
13.2W
MAX DRIVE CURRENT:
560mA
COLOR RENDERING INDEX (CRI):
>80
RECOMMENDED WIRING:
Parallel Connection
WARRANTY:
5 Years
