Description

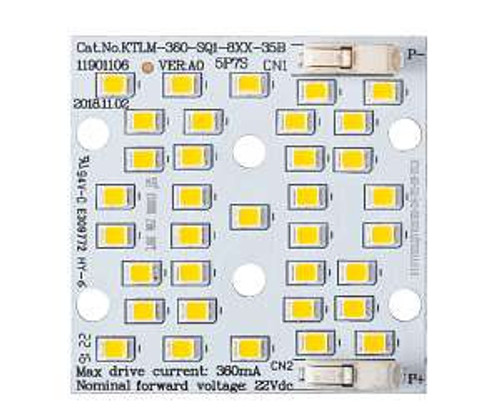

7.13W Square LED Module | 4000K Cool White | 360mA Drive Current | 120° Beam Angle
Keystone offers a variety of constant current LED modules to accommodate various types of strip, troffer, downlight, and custom fixture applications. We manufacture LED modules based on light output categories, as well as modules focused on maximum energy efficiency. Keystone’s LED module configurations provide even and consistent lighting. By using a PCB metal core, our LED modules use a low operating temperature to produce a bright light output as well as a longer life.
Keystone’s linear LED modules are the perfect solution for upgrading existing linear fluorescent fixtures. Many applications such as hospitals, high end retail stores, and printing facilities need a higher CRI to enhance color appearance. Our linear LED modules display the true color of products.
Features
- For use in Class 2 lighting systems
- Highly reflective white soldermask
- UL Recognized components
- Thermally conductive metal core PCB
- 4-step MacAdam color binning
- LM80 tested LEDs
- Beam angle: 120º
- Reported life expectancy: L70 > 36,000 hours at Tc <85ºC
