Description
LED Lighting Surge Protection | 120-277V | Max. Peak Current 10KV | IP67 Rated

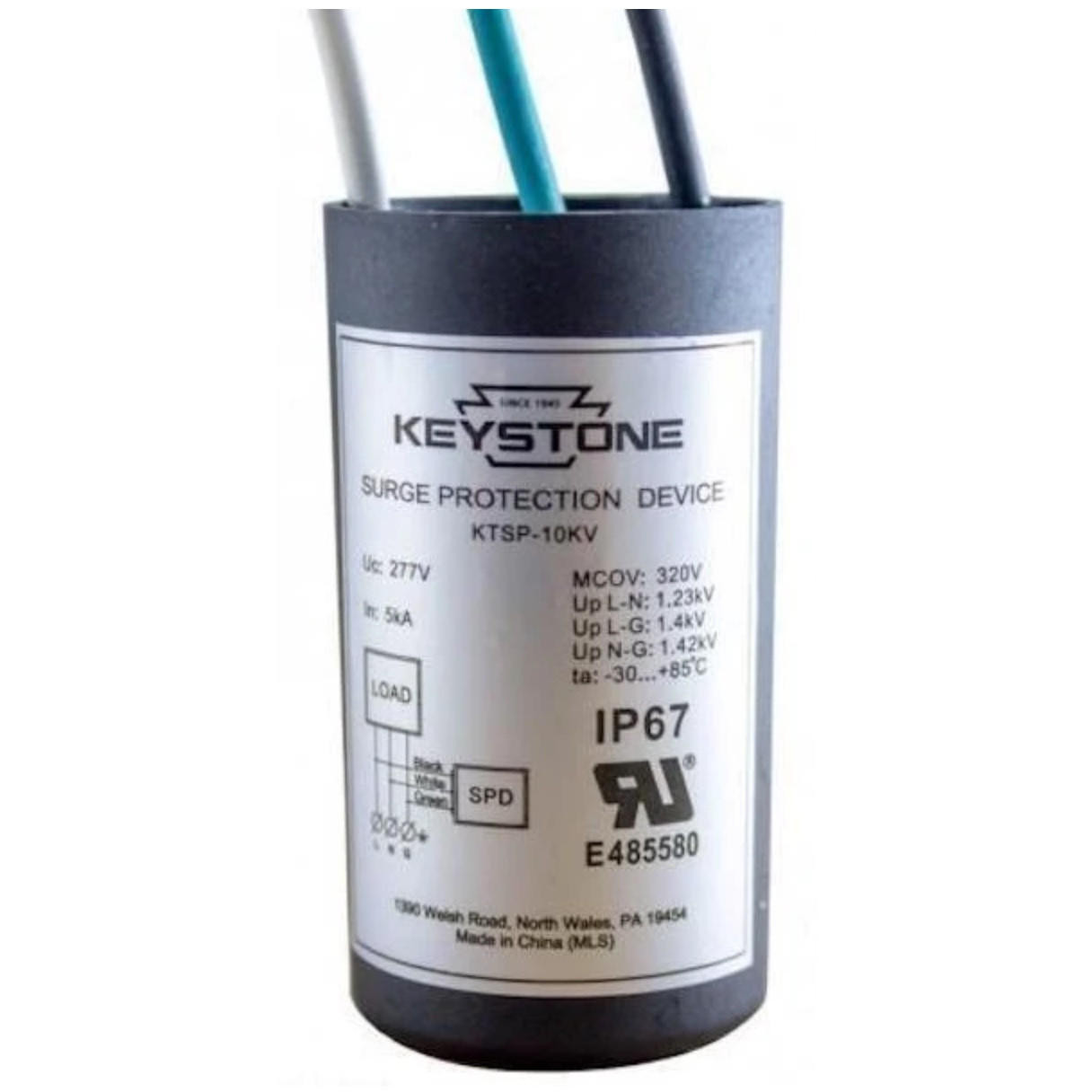

The Keystone KTSP-10KV is a powerful 3-lead surge protector designed to safeguard your LED lighting systems from harmful power surges. It offers robust protection against transients, ensuring the smooth and reliable operation of your LEDs.
Key Features:
- Protects against surges according to IEEE C62.41.2
- Surge location rated Category C3
- 10kA peak current and 10kV surge voltage handling
- IP67 rated for wet locations
- High temperature/flameproof enclosure
- RoHS compliant and UL recognized
- Parallel wiring for easy installation
Applications:
- Ideal for use with LED lamps, drivers, ballasts, and induction lighting
- Suitable for industrial and commercial applications
- Provides additional protection from dangerous powerline transients
Specifications:
- Input Voltage: 120-277Vac
- Frequency: 50/60Hz
- Dimensions: Diameter 1.30" (33mm), Length 2.56" (66mm)
- Max. Peak Current: 10KA
- Max. Clamping Voltage: 5,000V (8/20μs at 10kA)
Upgrade your LED lighting system with the Keystone KTSP-10KV surge protector and enjoy lasting peace of mind.
