Description

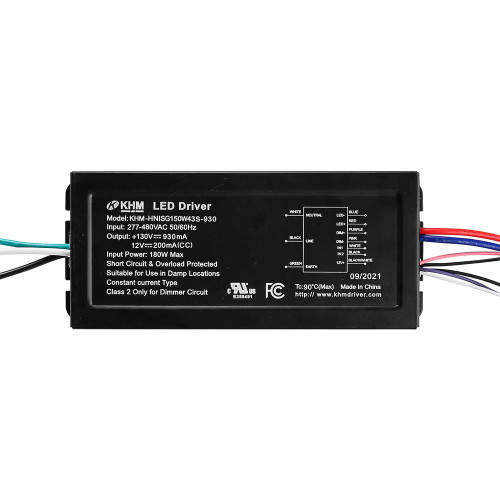

120W Constant Current Replacement LED Driver | 277-480VAC | 90-130VDC Output | 0.88-0.98A | 12V Auxiliary
The KHM-HNISG150W43S-930 is a constant current LED driver designed for North American high-voltage input applications. This model operates on 277-480VAC input and provides a 90-130VDC output range with 0.88-0.98A output current and 120W maximum output power. It includes an isolated 12V auxiliary power output (12V/0.1A) and is listed with dimming isolation with turn-off capability. Protection features include short circuit protection and over-temperature protection.
Product Specifications
- Model: KHM-HNISG150W43S-930
- Part Type: LED Driver
- Driver Type: Constant Current
- Max Output Power: 120W
- Output Voltage Range: 90-130VDC
- Output Current: 0.88-0.98A
- Input Voltage Range: 277-480VAC
- Input Frequency: 50/60Hz (47-63Hz range)
- Max Input Current: 0.6A
- Max Input Power: 161W
- Power Factor (Typical): 0.95
- THD (Max): <13%
- Efficiency (Typical): 93%
- Standby Power: <0.5W
- Surge Protection: DM 6kV, CM 6kV
- Aux Output: 12VDC / 0.1A (Isolated)
- Protection: Short Circuit Protection, Over-Temperature Protection
- Max Shell Temperature: 90°C
- Operating Temperature (Tcase): -40°C to +50°C
- Storage Temperature: -40°C to +80°C
- Certifications: UL 8750
- EMC: FCC Part 15 Subpart B Class B
- Warranty: 5 Years
- Dimensions: 6.68" L x 2.52" W x 1.57" H (169.7mm x 64mm x 40mm)
- UPC: Cannot Source
Applications
- Industrial and mining fixtures
- Plant lighting
- High-voltage commercial LED fixtures requiring constant current drivers
Benefits
- High efficiency (typical 93%) for reduced energy loss
- High-voltage 277-480VAC input for commercial installations
- Integrated isolated 12V auxiliary output for compatible controls
- Surge protection rated to 6kV (DM/CM) for improved resilience
- Built-in short circuit and over-temperature protection
Downloads
Non-Returnable Item Notice:
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
