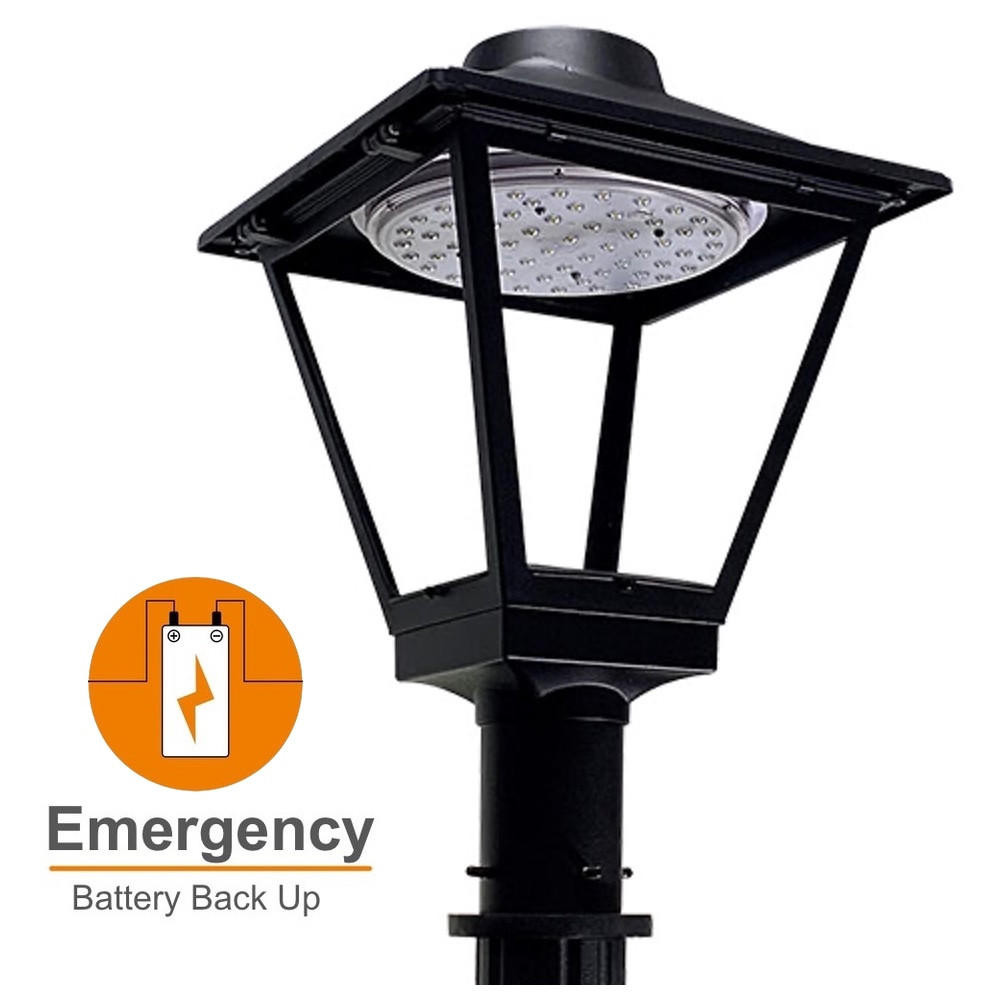

LED Post Top Coach Lantern Street Light with Battery Back Up

SKU:
QS-HR20QF1X19U3KOBBUC
Typically ships in 7-10 business days* View full description
Sale
$1,100.00
$842.89
Customer Reviews

Description

Outdoor Cold Start Emergency Colonial Style Pole Mount Area Fixture | Buy American Act Compliant

The LBS HR20Q Holly Ridge Post Top Historic Series are available in Type II, III, IV or V distributions designed to replace HID lighting systems up to 150w MH or HPS. This post top street/parking lot lantern qualifies for Buy American Act.  The fixture mounts to a pole top tenon. Typical area lighting applications include parking areas, walkways, and street lighting applications.Mounting heights of 12 to 30 feet can be used based on light level and uniformity requirements.

There is a COLD START battery emergency driver that operates at temperatures -20°C/-4°F or warmer for 90 Minute at 65W max power.  If you need the companion light without a battery back, please visit here.

Housing:

  • Die Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.
  • Listing & Ratings:
  • CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Engine.

Finish:

  • Black Powdercoat Finish Over a Chromate Conversion Coating.
  • Custom Colors Available Upon Request.

Lens:

  • Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics or
  • SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens. (Type V Only)
  • Gasketed to Seal LED Array.

Mounting:

  • Post Top Accommodates "P3" 2â…ž" O.D. x 3″ Tenon

Emergency Systems

  • Cold Start Battery Backup, operates as low as -20°C/-4°F, 90 Minutes

EasyLED LED:

  • Aluminum Boards
  • Type V Distribution (If other is light distribution is needed, please contact us)

Life Hours of Light Array

  • L70 Lumen Maintenance @ 25°C / 77°F | 154,000 hrs
  • L70 Lumen Maintenance @ 50°C / 122°F | 145,000 hrs
NOTES:
1. Projected per IESNA TM-21-11. Data references the extrapolated performance projections for the base model in a 25°C ambient, based on 10,000 hours of LED testing per IESNA LM-80-08.
2. Compare to MH box indicates suggested Light Loss Factor (LLF) to be used when comparing to Metal Halide (MH) systems.

Wattage:

  • 19w Array: 19w, System: 20w; (35-50w HID Equivalent)
  • 36w Array: 36w, System: 39w; (70-100w HID Equivalent)
  • 53w Array: 53w, System: 58w; (100-150w HID Equivalent)

Options

  • Please see specification sheet below and contact us for pricing

Downloads


* Specifications subject to change without notice.

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 10 business days to ship. This item ships directly from the factory. There is a 30% restocking fee imposed by the manufacturer for all returns not due to defect.

Extra Information

Brand:
LBS Lighting
Catalog No:
HR20Q-BB
Fixture Style:
Coach Lantern
Emergency Operation:
90 Minutes
Emergency Wattage:
Up to 65 Watt
Shade/Lens Color:
Open
Base Color:
Black
Base Material:
Aluminum
Height (in.):
24.75
Diameter (in.):
16.25
Case Quantity:
1
Color Temperature:
3000K, 4000K or 5000K
Dimmable:
Yes
Buy American Act Compliant:
Yes
Voltage:
120V/277V
Warranty:
5 Year
Light Source:
Integrated LED
