Description
LMK460-DIM-F-5000K-2 | Linear Low Profile High Bay Replacement | 120–277V | 0–10V Dimmable | Daylight

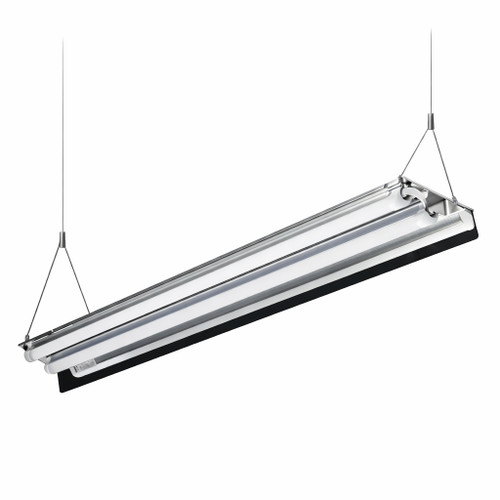

LED Stick 122W 4 ft LED High Bay with Integrated Aluminum Reflector is a high-output, low-profile linear high bay designed for demanding commercial and industrial retrofit applications. Delivering 18,556 lumens of crisp 5000K daylight illumination, this fixture is engineered to replace high-wattage metal halide and multi-lamp T5/T8 systems while maintaining a slim, modern form factor. The integrated aluminum reflector efficiently directs light downward for uniform coverage, improved efficiency, and reduced glare. Designed with contractors in mind, it supports 0–10V dimming, operates on 120–277V, and includes aircraft hanging cables and a 6-foot power whip for fast, flexible installation.
Product Specifications
- Brand: LED Stick
- Product Name: 122W 4 ft LED High Bay with Integrated Aluminum Reflector
- Fixture Type: Linear LED High Bay
- Nominal Length: 4 ft
- Wattage: 122W
- Lumen Output: 18,556 lumens
- Color Temperature: 5000K
- Color Rendering Index (CRI): >80
- Beam Angle: 120°
- Input Voltage: 120–277VAC
- Dimming: 0–10VDC
- Power Factor: >0.9
- Total Harmonic Distortion (THD): <15%
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Rated Life: >65,000 hours @ 55°C
- Lumen Maintenance: 98.89% @ 55°C
- Housing Material: Aluminum body
- Lens / Optics: Integrated aluminum reflector with polycarbonate lens
- Mounting: Surface mount or aircraft cable suspension
- Included Accessories: Aircraft hanging cables and 6 ft power whip
- Environmental Rating: Damp Location (IP51)
- Warranty: 7-Year Non-Prorated Warranty
Benefits
- High-output performance replaces 250W–400W metal halide and T5 fluorescent systems
- Integrated aluminum reflector improves downward light control and efficiency
- Slim, low-profile linear design ideal for modern industrial spaces
- 0–10V dimming supports energy savings and lighting control strategies
- Durable aluminum construction built for long service life
- Contractor-friendly installation with included hanging hardware and power whip
Applications
- Warehouses and distribution centers
- Manufacturing plants and industrial facilities
- Logistics hubs and fulfillment centers
- Big-box retail and wholesale spaces
- Gymnasiums and large open commercial interiors
