Description
Model LMK436-DIM-F-5000K-1 | 1 x 4ft Recess | 37W | 120–277V | 0–10V Dimmable | Bright Daylight | DLC Listed

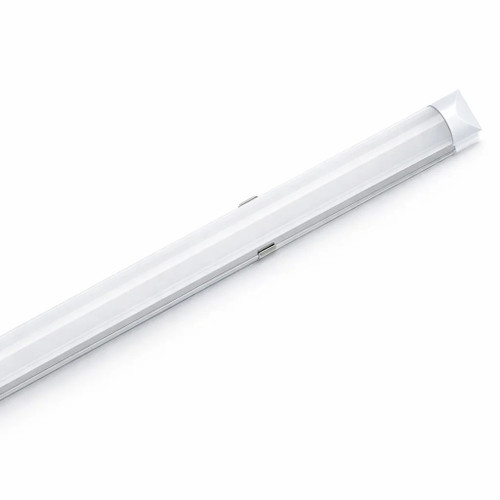

LED Stick LMK436-DIM-F-5000K-1 is a 4-foot linkable linear LED retrofit optimized for 1x4 and 2×4 troffer and linear lighting applications, while also supporting strip and light-duty low bay installations. Operating at 37 watts, it delivers 5,691 lumens at an efficiency of 157 lumens per watt, making it an ideal replacement for T12, T8, and T5 fluorescent lamps in commercial interiors. The slim aluminum extrusion housing with polycarbonate lens allows clean installation inside troffers or linear fixtures, while universal 120–277V input and smooth 0–10V dimming provide flexibility across retrofit scenarios. DLC 5.1 listing ensures verified performance and rebate eligibility.
Product Specifications
- Brand: LED Stick
- Model: LMK436-DIM-F-5000K-1
- Nominal Length: 4 ft
- Wattage: 37W
- Lumen Output: 5,691 lumens
- Efficacy: 157 LPW
- Input Voltage: 120–277VAC
- Color Temperature: 5000K
- CRI: 80+
- Dimming Type: 0–10V (10–100%)
- Beam Angle: 120°
- Construction: Aluminum extrusion with polycarbonate lens
- IP Rating: IP51 (Damp Location)
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Rated Life: >65,000 hours @ 55°C
- Lumen Maintenance: 98.89% @ 55°C
- Power Factor: >0.98
- Total Harmonic Distortion: <15%
- Max Connected Load: 4.5 amps per power whip
- Certification: DLC 5.1 Listed – Low Bay Luminaire
- Warranty: 7-Year Non-Prorated
Benefits
- Purpose-built for 2×4 and 1x4 troffer and linear ambient retrofits
- Clean, low-profile design fits easily inside troffer housings
- Linkable 4ft format for continuous linear runs
- High efficiency reduces energy and operating costs
- DLC-listed for utility rebate programs
Applications
- 2×4 LED Troffer Retrofits
- Linear Ambient Fixtures
- Offices and Commercial Interiors
- Retail and Education Spaces
- Warehouses (light-duty low bay use)
