Description
100W Constant Current Replacement LED Driver | 2500mA | 277-480VAC | 30-38VDC | 1-10V Dimming | 12V Aux

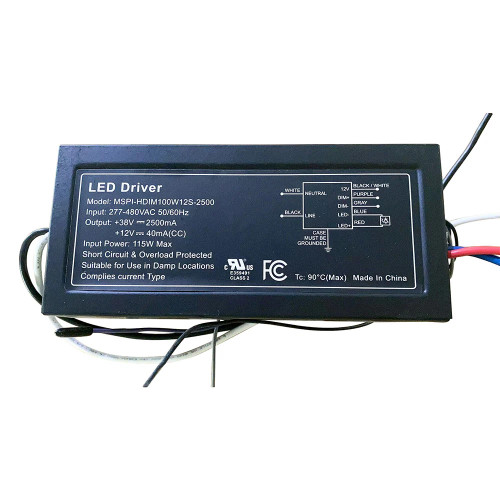

The KHM MSPI-HDIM100W12S-2500 is a 100W constant current LED switching power supply designed for high-voltage commercial applications operating on 277-480VAC input. This model delivers 2500mA output current within a 30-38VDC output voltage range and includes integrated 1-10V dimming control compliant with UL8750 standards. Engineered for reliability, this driver features active power factor correction, lightning surge protection (4kV L-N, 6kV L/N-PE), and built-in short circuit and open circuit protection. It also includes an integrated 12V auxiliary output (12VDC, up to 40mA) for compatible control accessories.
Product Specifications
- Model: MSPI-HDIM100W12S-2500
- Driver Type: Constant Current
- Max Output Power: 95.0W
- Output Voltage Range: 30-38VDC
- Output Current: 2500mA ±3%
- Input Voltage: 277-480VAC
- Input Frequency: 47-63Hz
- Max Input Current: 0.43A @277VAC
- Power Factor: 0.92-0.99
- THD: ≤20%
- Efficiency: Up to 88.5%
- No Load Power Consumption: 0.99W @480VAC
- Dimming: 1-10V (10%-100% Iomax)
- Auxiliary Output: 12VDC (11.2-12.8V), 40mA Max
- Surge Protection: 4kV (L-N), 6kV (L/N-PE)
- Operating Case Temperature (Safety): -40°C to +90°C
- Operating Case Temperature (Warranty): -30°C to +75°C
- Storage Temperature: -40°C to +85°C
- IP Rating: Cannot Source
- Dimensions (Option A): 162mm x 63mm x 41mm
- Dimensions (Option B): 158mm x 64mm x 39mm
- Net Weight: 630g (A) / 590g (B)
- Certifications: UL8750 Class 2, FCC Part 15, CISPR15
- Warranty: 5 Years
Applications
- Industrial LED fixtures
- High voltage commercial lighting
- Outdoor lighting systems
- LED modules requiring 2500mA constant current
Downloads
Non-Returnable Item Notice:
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
