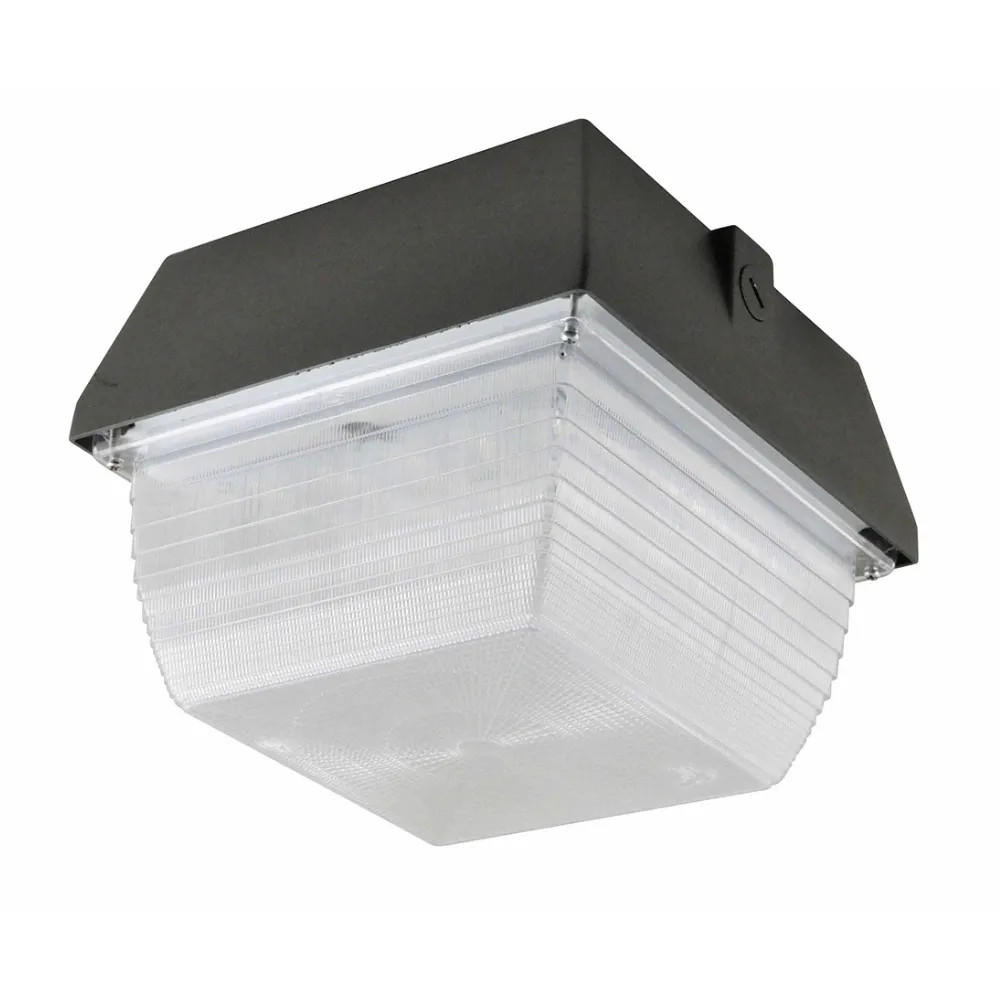

LED-FXCCM60/50K/DB Rugged Surface Mount Canopy For Commercial Parking And Canopies | Daylight (5000 K) | IP65 Housing
Specifically designed for parking garages and canopy applications, this surface-mount LED canopy reduces maintenance and energy costs while delivering bright, uniform Daylight light for improved safety and visibility. This 60W square fixture is part of our canopy lights collection for parking garages and covered walkways.
KEY FEATURES:
- IP65 Rated: Weatherproof design protects LEDs in wet and exposed canopy environments.
- Location Rating: Wet location rated
- Durable Construction: Die-cast aluminum housing with shatter-resistant polycarbonate lens for long-term reliability.
- Efficient Output: Provides high lumen output at 60W to replace traditional HID fixtures with lower energy use.
- Built-In Protection: 2KV surge protection and Power Factor >0.9 for stable performance.
- Low-Temperature Performance: Operates from -22°F to 131°F for year-round reliability.
- Optional Emergency: Field-installable emergency driver available.
APPLICATIONS:
- Parking garages and covered parking structures.
- Warehouse canopy and loading dock lighting.
- Entryways, walkways, and security perimeter canopies.
- Tip: Install at the recommended 15–30 ft mounting height for optimal performance.
SPECIFICATIONS:
- Wattage: 60W
- Lumens: 4,948
- Color Temperature: Daylight (5000 K)
- CRI: 70
- Voltage: 120-277V
- Power Factor: >0.9
- Surge Protection: 2KV
- Beam Angle: 140° (CCM)
- Rated Life: 50,000 Hours
- Operating Temperature: -22°F to 131°F
- Color: Dark Bronze
- Lens: Shatter-resistant Polycarbonate
- Housing: Die-cast Aluminum
- Dimensions: 11.25" (288mm)
- Weight: 13.00-lbs
- Case Qty: 1 pc
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL Rated; DLC Listed
- Warranty: 5 Year Warranty
- Recommended Mounting: 15–30 ft height for best performance
