Description

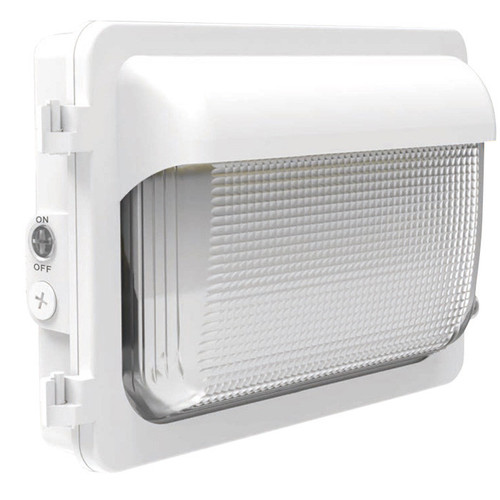

FXTWX60SW/8CCT3/WH-PHO Compact Traditional Wall Pack | CCT Selectable Outdoor Perimeter Lighting With Integrated Photocell And 0-10V Dimming
Specifically engineered for perimeter, pathway, and security illumination, the NaturaLED TWX 60SW combines selectable wattage and color temperature with an integrated photocell to simplify installs and reduce maintenance. Its compact die-cast aluminum housing and borosilicate lens deliver rugged, reliable outdoor performance while enabling flexible light output to match site requirements.
KEY FEATURES:
- Wattage & Color Selectable: Field-selectable 25W / 40W / 60W with 3CCT (3000K / 4000K / 5000K) options to tailor output and color for each application.
- Integrated Controls: Built-in photocell for automatic on/off plus 0-10V dimming capability for energy savings and control integration.
- Durable Outdoor Construction: Die-cast aluminum housing with corrosion-resistant powder coat finish and borosilicate glass lens; IK10 impact rating and IP65 ingress protection.
- Electrical Protection: 120-277V operation with 4kV surge protection for reliable outdoor performance.
- Low Maintenance: Long life design rated for 50,000 hours and backed by a 5-year limited warranty.
APPLICATIONS:
- Ideal for building perimeters, entryways, and security illumination around commercial and industrial sites.
- Well-suited for parking lot aisles, walkways, and pathway lighting requiring focused forward throw distribution.
- Perfect for retrofit or new construction where selectable output and color temperature reduce SKUs and simplify stocking.
- Usage Tip: Use 3000K for residential or hospitality facades, 4000K for commercial property exteriors, and 5000K for high-security or perimeter installations.
SPECIFICATIONS:
- Wattage: Selectable 25W / 40W / 60W
- Lumens: 3,729 lm (25W) / 5,000 lm (40W) / 7,538 lm (60W)
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 4 kV
- IP Rating: IP65
- Lens: Borosilicate Glass
- Material / Finish: Die Cast Aluminum with Corrosion-Resistant Powder Coat (White)
- Operating Temperature: -40°F to 122°F
- Rated Life: 50,000 hours
- Weight: 9.26 lbs
- Dimensions: 15.55 × 4.21 × 9.76 in
- Warranty: 5-Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL / cETL Listed
- Impact Rating: IK10
- Built-In Controls: Photocell Included (PHO)
- Optional Accessories: Microwave Sensor, Emergency Driver, Remote Control (sold separately)
