Description

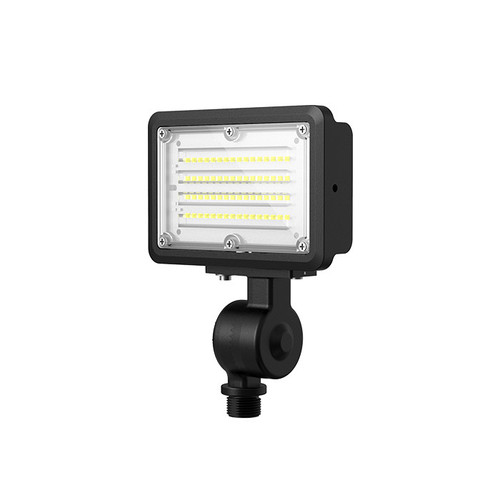

FXFDL15SW/77/CCT3/BK-KNC Outdoor 7x7 Floodlight | CCT Selectable Security And Landscape Fixture For Perimeter Lighting
Built for reliable, low-maintenance outdoor illumination, the NaturaLED 7x7 floodlight delivers selectable wattage and color temperature plus an integrated photocell for automated dusk-to-dawn operation—helping reduce energy use and simplify installations for perimeter, landscape, and architectural lighting projects.
KEY FEATURES:
- Wattage & Color Flexibility: Field-selectable 9W, 12W, or 15W with 3CCT (3000/4000/5000K) options to match site needs and minimize SKUs.
- Integrated Photocell: Built-in sensor provides automatic dusk-to-dawn control for enhanced security and energy savings.
- Durable Outdoor Construction: IP65-rated die-cast aluminum housing with polycarbonate lens and corrosion-resistant finish for long-term outdoor performance.
- Quick Installation: Pre-installed 1/2" knuckle mount and 16" SO cord speed up mounting and wiring on poles and walls.
- Reliable Protection: 4kV surge protection and a 50,000-hour rated life reduce maintenance and downtime.
APPLICATIONS:
- Ideal for perimeter security, exterior building facades, and entryway illumination.
- Perfect for landscape, pathway, and architectural accent lighting.
- Suitable for parking areas and site lighting requiring adjustable output and color temperature.
- Usage Tip: Mount between 10–25 ft and adjust the knuckle for even 7x7 beam coverage.
SPECIFICATIONS:
- Wattage: Selectable: 9W / 12W / 15W
- Lumens: 1,260 lm (9W); 1,680 lm (12W); 2,100 lm (15W)
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >70
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 4kV
- Beam Angle: NEMA 7x7
- IP Rating: IP65
- Material & Lens: Die Cast Aluminum housing; Polycarbonate lens
- Mounting: Pre-installed 1/2" knuckle mount; 16" SO cord
- Rated Life: 50,000 hours
- Warranty: 5-year limited warranty
- Dimensions: 5.24 × 1.81 × 7.20 in
- Weight: 1.25 lb
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC Premium, UL Listed
- Location Rating: Suitable for wet/outdoor locations (IP65)
