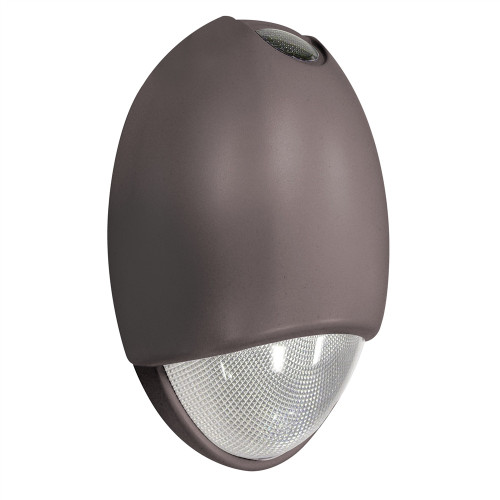

LEDEM-WP15/8C3/BZ-PHO CCT Selectable Emergency Wall Pack | Photocell And 90-Min Emergency Backup For Pathway, Perimeter, And Egress Lighting
Engineered for perimeter, pathway, and egress applications, the NaturaLED LEDEM-WP15/8C3/BZ-PHO combines low-profile architectural styling with integrated emergency backup and automatic dusk-to-dawn control to ensure continuous, reliable illumination during power interruptions and nightly operation.
KEY FEATURES:
- Integrated Emergency Backup: Built-in battery provides >600 lm for 90 minutes of emergency operation to maintain safe egress lighting.
- CCT Selectable: Field-adjustable DIP switch lets installers choose 3500K, 4000K, or 5000K to match site needs.
- Photocell Included: Factory-installed dusk-to-dawn photocell enables automatic on/off control for energy savings and security.
- Durable Outdoor Construction: Die-cast aluminum housing with polycarbonate diffused lens and IP65 rating for wet-location performance.
- Reliable Performance: 120-277V operation with 2.5KV surge protection and a 5-year limited warranty.
APPLICATIONS:
- Ideal for building perimeters, walkways, and commercial egress pathways.
- Well-suited for multi-family properties, retail exteriors, and light industrial sites requiring emergency illumination.
- Perfect for retrofit or new-install outdoor wall lighting where automatic dusk-to-dawn operation is desired.
- Installation Tip: Use the onboard DIP switch to preset the desired CCT before mounting; default is 5000K with photocell ON.
SPECIFICATIONS:
- Wattage: 15W
- Lumens: 1,740
- Color Temperature: 3CCT (3500K / 4000K / 5000K)
- CRI: 80
- Voltage: 120-277V
- Dimmable: 0-10V
- Emergency Mode: >600 lm for 90 minutes
- Surge Protection: 2.5KV
- Beam Angle: 100°
- Lens: Polycarbonate Diffused Lens
- Material: Die Cast Aluminum
- IP Rating: IP65 (Wet Locations)
- Listings: DLC Premium, UL924 Listed
- Rated Life: 50,000 hours
- Dimensions: 10.47 × 6.54 × 3.78 in
- Weight: 3.21 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Location Rating: Suitable for wet locations (IP65)
- Controls: Built-in Photocell (default preset to 5000K with Photocell ON)
- Warranty: 5 Year Limited Warranty
