Description

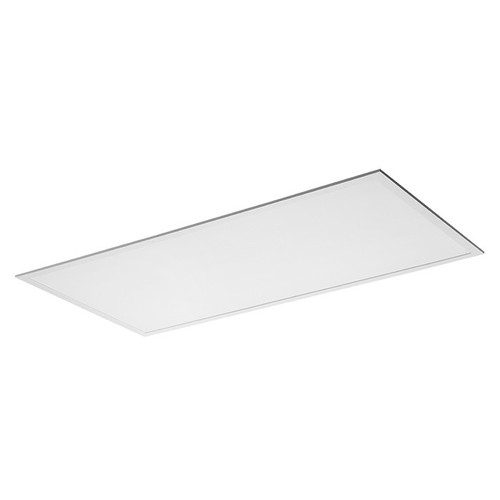

2x4 Rectangle LED Backlit Flat Panel | Selectable 30/40/50W and 3500K/4000K/5000K
The NaturaLED 9755 is a 2x4 LED backlit flat panel. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It is designed for 2x4 drop ceiling grids.
Features
- Selectable Wattages & CCT: Field-selectable wattage and color (30W / 40W / 50W; 3500K / 4000K / 5000K).
- Uniform Illumination: Back-lit design delivers smooth, edge-to-edge light distribution for low-glare performance.
- Wide Voltage Range: 120-277V for flexible installation across commercial sites.
- Controls Ready: 0-10V dimmable with 12V AUX output for controls and accessories.
- Robust Performance: Power factor >0.9 and 2.5KV surge protection for reliable operation.
Specifications
- Product Code: PNL/50SW/2X4/8CCT3
- Size: 2x4 ft
- Fixture Type: Backlit Flat Panel
- Wattage: 30/40/50W selectable
- Lumens: 3,300/4,400/5,500 lm
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: >80
- Voltage: 120-277V
- Dimming: 0-10V
- Beam Angle: 115°
- Rated Life: 50,000 hours
- Location Rating: Damp location
- Warranty: 5 years
Installation & Compatibility
- Lays into standard 2x4 drop ceiling grids
- Surface mount and flange mount kits available (sold separately)
Rebates & Certifications
- ETL Listed
- DLC Standard
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Ideal for offices, conference rooms, and classrooms where consistent, low-glare light is required.
- Suited for healthcare, retail, and educational facilities replacing fluorescent troffers.
- Works in grid ceilings or as a surface-mounted panel using optional surface-mount kits.
- Installation Tip: Use the optional surface mount or flange kit for non-T-bar ceilings to maintain uniform appearance.
Frequently Asked Questions
Can I change the settings after installation?
Yes. Wattage (30/40/50W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Does it qualify for rebates?
It is DLC Standard listed, which often qualifies for utility rebates. Check with your local utility.
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
