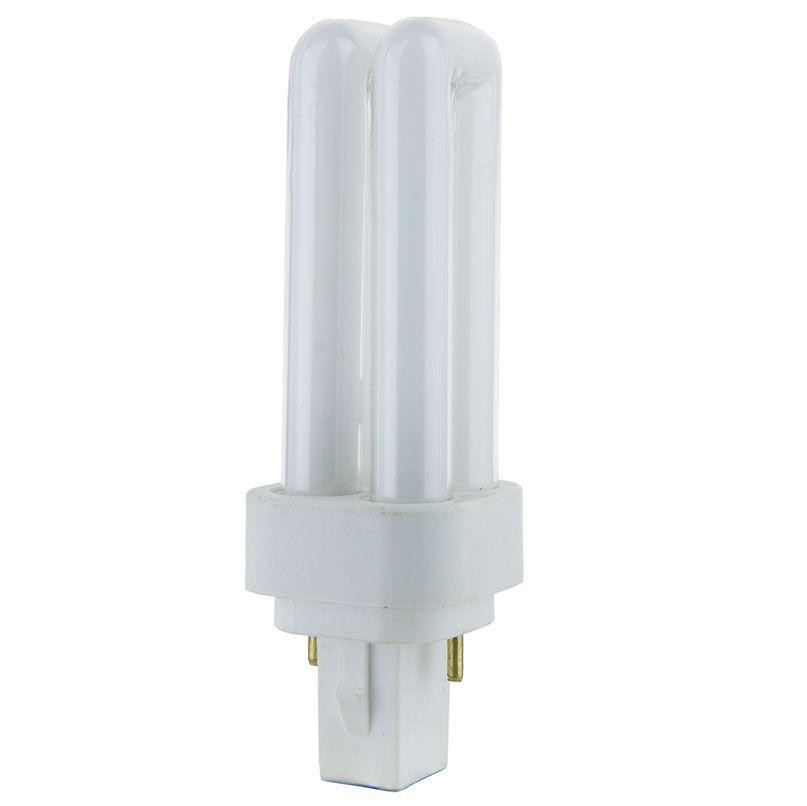

PLD9/SP30K Compact Plug-In CFL for G23 Fixtures | Soft White (3000 K) Lighting Upgrade For Offices, Retail, and Hospitality
Designed for fast, low‑maintenance retrofits, the PLD9/SP30K plug‑in lamp provides warm, comfortable illumination in a compact form factor. It simplifies replacement of older 2‑pin tubes by delivering consistent light output while reducing service frequency and improving visual comfort in commercial and hospitality settings.
KEY FEATURES:
- Easy Retrofit: Plug‑in design fits G23 sockets for quick replacement of legacy 2‑pin tubes.
- Energy Efficient: 9W operation producing 525 lumens to lower energy consumption vs older lamps.
- Long Life: 10,000 hour average rated life reduces maintenance and replacement cycles.
- High Color Quality: 80 CRI delivers natural-looking light in Soft White tones.
- Compact Size: 4.34" mean overall length for use in compact fixture housings.
APPLICATIONS:
- Ideal for commercial ceiling fixtures, under-cabinet displays, and retail shelving illumination.
- Well suited for hospitality corridors, offices, and task lighting where warm, comfortable light is preferred.
- Perfect for replacing aging 2‑pin fluorescent tubes in legacy plug‑in fixtures.
- Installation Tip: Ensure the fixture accepts G23‑2 plug‑in lamps and is using a compatible external electronic ballast.
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 525
- Color Rendering Index (CRI): 80
- Color Temperature: 3000K
- Base Type: G23-2 (2-Pin)
- Bulb Shape: PLD 2-Pin Double U
- Average Rated Hours: 10,000
- Average Life Span (Years): 9
- Mean Overall Length (MOL): 4.34 in
- Diameter: 1.338 in
