Description

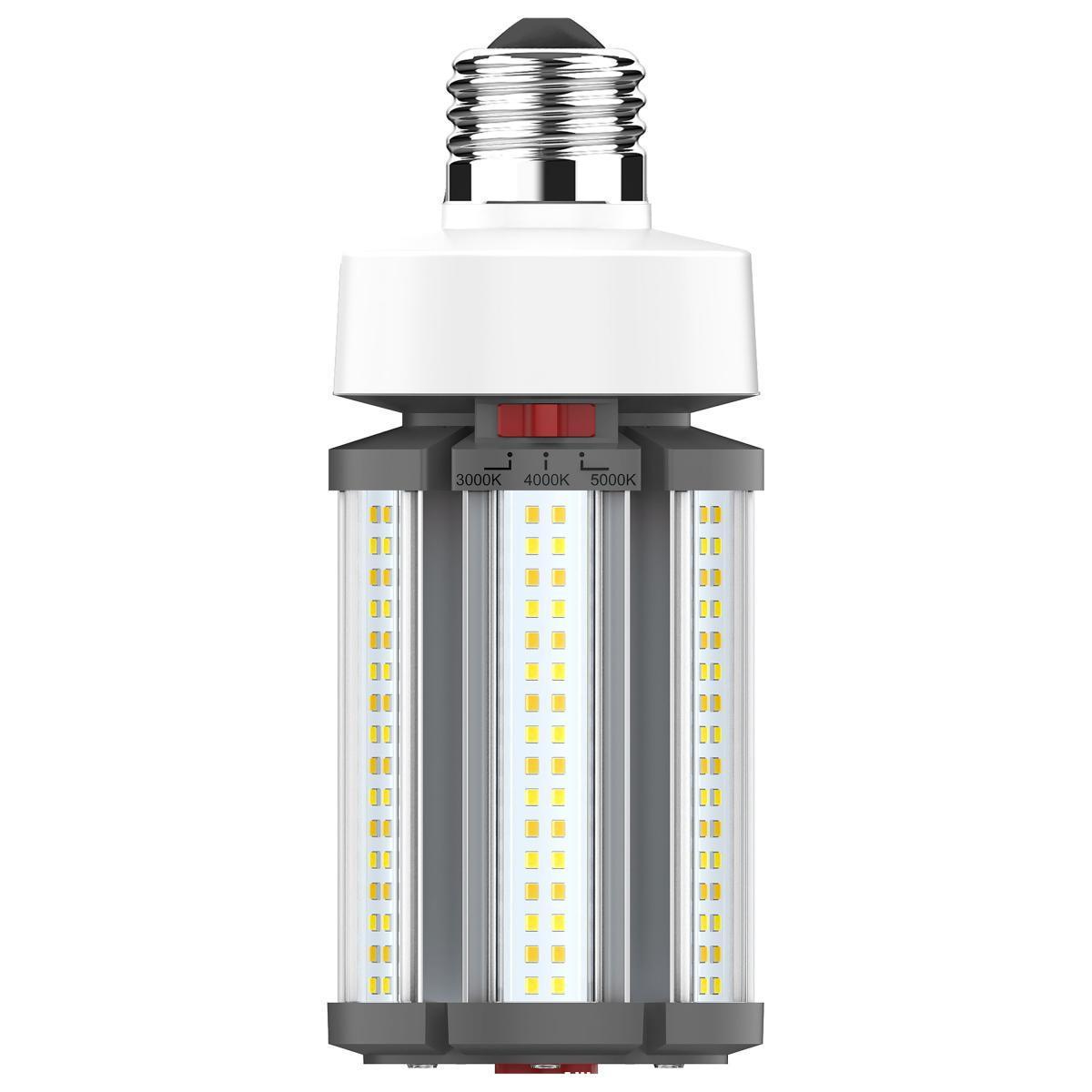

45W/LED/CCT/100-277V/E26 Versatile LED Corncob Retrofit For Post Tops And Low-Bay Fixtures | CCT Selectable | Medium E26 Base
Upgrade legacy HID sockets with a flexible, energy-saving LED solution. This field-adjustable corncob lamp simplifies standardization across facilities with selectable wattage and CCT, installs via ballast bypass to reduce maintenance points, and is rated for enclosed fixtures for dependable performance in demanding environments.
KEY FEATURES:
- Selectable Output: Choose from 27W/36W/45W and 3000K/4000K/5000K to tailor light levels and ambiance.
- Maintenance Saver: Ballast bypass design removes failure-prone components for long-term reliability.
- Enclosed Fixture Ready: Approved for use in sealed housings for broader retrofit compatibility.
- Built-In Protection: 4KV surge protection helps safeguard against electrical spikes.
- Flexible Installation: Universal operating position with medium E26 base fits common sockets.
APPLICATIONS:
- Post top luminaires in pathways and campuses.
- Low-bay fixtures in warehouses and retail floors.
- Area and site lighting in covered outdoor locations.
- Tip: Set the wattage/lumen dial to meet target light levels and energy goals.
SPECIFICATIONS:
- Watts: 45W/36W/27W
- Incandescent Equivalent: 125W
- HID Equivalent: 175W/150W/125W
- Volts: 100V-277V
- Shape: Corncob
- Base: Medium (E26)
- Finish: White
- CCT (Kelvin): 3000K/4000K/5000K
- Temperature: Warm to Cool White
- CRI: 80
- Lumens: 6300/5040/3780
- Beam Spread: 300
- Dimmable: Dimmable only via the wattage/lumen selectable dial included on lamp
- Hours Rated: 50,000
- Lamp Type: Corncob
- Technology: LED
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50-60Hz
- Power Factor: >0.9
- Operating Position: Universal
- Surge Protection: Built-in surge protection - 4KV
- Operating Temperature: -40C (-40F) to +60C (+140F)
- MOL: 9.45
- MOD: 3.35
- Lens Material: Plastic
- Housing Color: Dark Gray
- Weight (lb.): 1.63
- Rated For Enclosed Fixture: Yes
- Warranty: 5 Year Limited - Hi-Pro
- Safety Listing: cULus - Listed
- Location Rating: Damp
- Energy Star: No
- DLC Approved: No
- CA T20 / T24 Rationale: Exempt - >2600 Lumens
- California Status: Lawful for sale in California
- Title 20 / 24 Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
CERTIFICATIONS & ADDITIONAL NOTES:
- Dimming Note: Adjust brightness via the integrated wattage/lumen selection dial.
