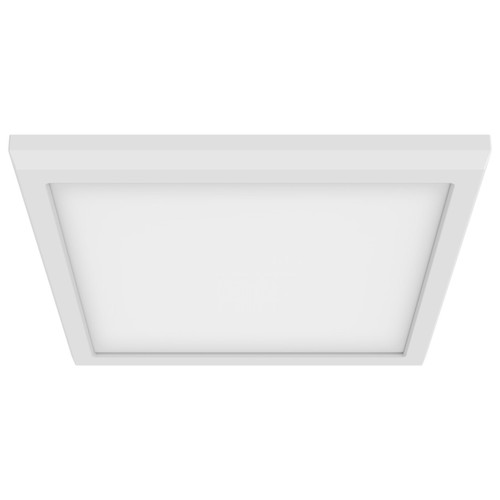

9-Inch Square LED Ceiling Fixture | Soft White 3000K Indoor/Outdoor Damp Use, Integrated 13W LED, 50K-Hour Life
Upgrade low-clearance ceilings and exterior soffits with this compact 9-inch square LED fixture that delivers Soft White illumination and reliable, long-life performance. The integrated 13W lamp provides about 1,200 lumens of high-CRI light while supporting 0-10V dimming and universal 120/277V operation to simplify installations in residential and commercial damp locations.
KEY FEATURES:
- Space-Saving Design: 9" square low-profile housing modernizes tight ceilings and fits standard junction boxes.
- High-Quality Light: Soft White 3000K output with CRI 90+ for accurate color rendering.
- Energy Efficient: Integrated 13W LED delivers ~1,200 lumens (100W incandescent equivalent) with a 50,000-hour rated life.
- Controls Ready: Dimmable via 0-10V for smooth, flicker-free dimming control.
- Rugged Construction: Aluminum body with frosted PMMA lens and built-in 2.5KV surge protection for durability.
APPLICATIONS:
- Ideal for covered exterior soffits, porches, and canopy lighting where wet-location rated fixtures are required.
- Well suited for utility rooms, garages, and stairwells in residential or commercial buildings.
- Works in corridors, entryways, and small retail spaces needing high-CRI ambient light.
- Installation Tip: Use with 0-10V dimming controls for consistent light levels and extended service life.
SPECIFICATIONS:
- Wattage: 13W
- Lumens: 1200L
- Color Temperature: Soft White 3000K
- CRI: 90+
- Hours Rated: 50,000
- Beam Angle: 100°
- Voltage: 120V/277V
- Dimmable: Yes - 0-10V Dimming
- Power Factor: >0.9
- Total Harmonic Distortion: <30%
- Operating Temp: -25C (-13F) to +40C (+104F)
- Material: Aluminum
- Lens Material: Poly methyl methacrylate (PMMA), Frosted
- Finish: White
- Fixture Shape: Square
- Lamp: Integrated LED (Integrated Base)
- Incandescent Equivalent: 100W
- Surge Protection: Built-in 2.5KV
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus
- Location Rating: Wet
- Compliance: CA Regulations T24 2016 - 2025; T24 Compliant; Title 20 Exempt
- Other: FCC Compliant; ROHS Compliant; Not DLC Approved; Energy Star Certified: No
