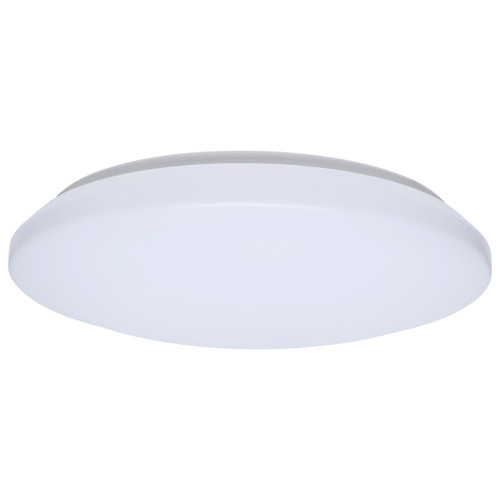

Low-Profile 14 Inch Ceiling Cloud Fixture For Offices And Hallways | CCT Selectable • 0-10V Dimming • 50,000-Hour Life
This low-profile ceiling cloud fixture delivers bright, comfortable illumination while reducing energy use and maintenance for offices, corridors, and residential common areas. The integrated LED platform and selectable color temperatures streamline installation and let installers set the desired ambiance on-site without swapping lamps.
KEY FEATURES:
- Integrated LED Efficiency: 17W nominal power producing 1,500–1,600 lumens for bright, low-energy illumination.
- Selectable Color Temperatures: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to match space needs.
- Smooth Dimming: 0-10V dimming compatibility enables seamless integration with common lighting controls.
- Durable Construction: Steel housing with PMMA lens and white finish for long-lasting, clean aesthetics.
- Built-In Protection: Integrated 2.5kV surge protection helps safeguard fixtures in commercial environments.
- Long-Life Performance: Rated for 50,000 hours and backed by a 5-year warranty.
APPLICATIONS:
- Ideal for office ceilings, corridors, and reception areas where low-profile, even illumination is needed.
- Well-suited for apartment common spaces, hallways, and break rooms requiring durable, low-maintenance lighting.
- Works in retail back-of-house, utility rooms, and light commercial interiors that need high-CRI, consistent light.
- Usage Tip: Use a 0-10V controller to program smooth dimming scenes and maximize energy savings.
SPECIFICATIONS:
- Wattage: 17W
- Lumens: 1,500–1,600 lm
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (CCT Selectable)
- CRI: 90+
- Beam Angle: 110°
- Voltage: 120–277V
- Power Factor: 0.9
- Dimmable: 0-10V
- Rated Life: 50,000 hours
- Material: Steel housing
- Lens Material: PMMA
- Finish: White
- Shape / Diameter: Round / 13.98"
- Incandescent Equivalent: 100W
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cETLus Listed
- Location Rating: Suitable For Damp Locations
- Compliance: California T24 Listed; FCC Compliant; RoHS Compliant
- Operating Temperature: -20°C to +40°C (-4°F to +104°F)
- Surge Protection: Built-in 2.5kV
