Description

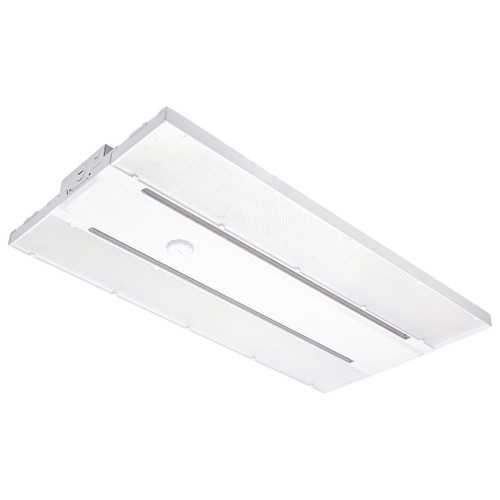

Industrial LED Linear High-Bay Fixture | Soft White 3000K • Cool White 4000K • Daylight 5000K | 200/220/255W, Damp Rated
Specifically engineered for modern high-bay installations, this Satco integrated LED linear fixture reduces maintenance and energy costs while delivering adjustable light output and color tones tailored to warehouses, manufacturing floors, and gymnasiums.
KEY FEATURES:
- Wattage Selectable: Switchable 200W, 220W, or 255W options to match required illuminance and energy budgets.
- CCT Flexibility: Select 3000K, 4000K or 5000K to optimize workspace color rendering and occupant comfort.
- Integrated Dimming: 0-10V dimming support enables smooth brightness control and energy savings when paired with controls.
- High Output & Efficiency: Delivers 28,320–37,270 lumens for strong high-bay illumination with long-life LED performance.
- Robust Construction: Die-cast aluminum housing and polycarbonate lens for durable indoor performance.
- Electrical Reliability: Built-in 6kV surge protection, power factor >0.9, and THD <20% for stable operation.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring high-output, low-maintenance lighting.
- Well-suited for manufacturing and industrial facilities with variable illumination needs.
- Great choice for gymnasiums, multipurpose arenas, and large retail back-of-house areas.
- Usage Tip: Integrate with 0-10V controls or occupancy sensors to maximize energy savings and extend LED life.
SPECIFICATIONS:
- Wattage: 200W / 220W / 255W (Selectable)
- Lumens: 28,320L - 37,270L
- Hours Rated: 50,000
- Beam Angle: 90x90°
- Color Temperature: 3000K / 4000K / 5000K (Selectable)
- CRI: 80+
- Voltage: 120-277V
- Dimmable: Yes, 0-10V
- Power Factor: >0.9
- Total Harmonic Distortion: <20%
- Operating Temp: -40°C to +55°C
- Material: Die-cast Aluminum housing; Polycarbonate lens
- IP Rating: IP20 (Damp Location)
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Certified
- DLC: DLC Approved
- FCC: FCC Compliant
- RoHS: RoHS Compliant
