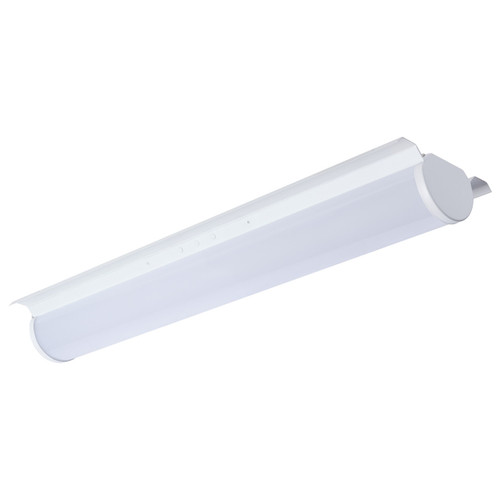

Compact Two-Foot Retrofit Linear Fixture For Interior Utility And Task Lighting | Cool White 4000K | Multi-Watt Selectable With 0-10V Dimming
Upgrade aged strip lighting with a compact, integrated LED solution that reduces maintenance and energy costs. The Satco 65-1030 offers selectable lumen and color outputs so installers can stock one SKU for varied interior applications while delivering consistent, glare-controlled light and simple 0-10V dimming integration.
KEY FEATURES:
- Multi-Watt Selectable: Choose 15W, 20W, or 25W to match space needs and reduce energy use.
- Selectable Color Temperature: Field-selectable 3500K / 4000K / 5000K to suit task or ambient lighting requirements.
- Integrated Dimming: 0-10V dimming for smooth, flicker-free light level control and system compatibility.
- Durable Optics & Finish: Frosted polycarbonate lens with gloss white steel housing for uniform illumination and easy cleaning.
- Built-In Protection: 2 kV surge protection helps safeguard against transient spikes in commercial environments.
APPLICATIONS:
- Ideal for utility rooms, back-of-house corridors, and maintenance areas.
- Well suited for retail stockrooms and under-shelf task lighting where compact linear fixtures are needed.
- Great for office support spaces, break rooms, and stairwells requiring durable, low-maintenance fixtures.
- Tip: Set default CCT to 4000K for balanced ambient lighting when replacing mixed-source fixtures.
SPECIFICATIONS:
- Wattage: 15W / 20W / 25W
- Lumens: 1,950 / 2,600 / 3,250
- Color Temperature: 3500K / 4000K / 5000K
- CRI: 80
- Hours Rated: 50,000
- Voltage: 120V-277V
- Power Factor: 0.9
- Beam Angle: 120°
- Lens Material: Polycarbonate (PC) Frosted
- Finish: Gloss White
- Dimmable: Yes - 0-10V Dimming Only
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus - Classified
- DLC: Approved
- FCC Compliant: True
- Location Rating: Damp
- RoHS Compliant: Yes
- Surge Protection: Built-in surge protection - 2KV
- Operating Temp: -20°C (-4°F) to +45°C (+113°F)
- Default Settings: Default CCT = 4000K; Default Wattage = 25W
