Description

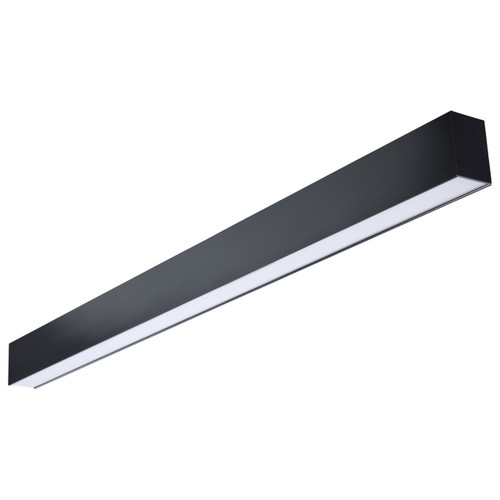

Connectable 4ft LED Linear Fixture With Up/Down Selectable Output | CCT Selectable For Office, Retail, And Corridor Lighting
Engineered for modern commercial spaces, the Momentum 4ft connectable linear provides flexible up/down selectable illumination, selectable color temperatures, and integrated 0-10V dimming to reduce maintenance and simplify retrofits in offices, retail, and circulation areas.
KEY FEATURES:
- Connectable Design: Link multiple 4ft fixtures for continuous runs and uniform illumination.
- CCT Flexibility: Switch between 3000K, 4000K, and 5000K to match space needs.
- Selectable Output: Choose 30W, 40W, or 50W to balance brightness and energy use.
- Integrated Dimming: 0-10V dimmable for smooth, flicker-free dimming control.
- Built-In Protection: 2 kV surge protection and flicker-free operation for reliable performance.
APPLICATIONS:
- Ideal for offices and open-plan workspaces.
- Well suited for retail aisles and showroom lighting.
- Perfect for building corridors and stairwells.
- Usage Tip: Use in continuous connectable runs and pair with 0-10V controls for consistent dimming.
SPECIFICATIONS:
- Wattage: 30W / 40W / 50W
- Lumens: 3,300 / 4,400 / 5,500
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Voltage: 120-347V
- Dimmable: Yes - 0-10V
- Rated Life: 50,000 hours
- Beam Angle: 120°
- Finish: Black
- Length: 48.19 in (4 ft)
- Power Factor: 0.93
- Surge Protection: Built-in 2 kV
- Max Wattage (Connected): 700W @120V; 1400W @277V; 1750W @347V
- Fixture Type: Integrated LED Linear
CERTIFICATIONS & ADDITIONAL NOTES:
- Location Rating: Damp
- Safety Listing: cETLus
- DLC: Approved
- Warranty: 5-Years
