Description
8ft Connectable LED Linear For Commercial Lighting | Soft White 3000K To Daylight 5000K | 0-10V Dimming & Surge Protection

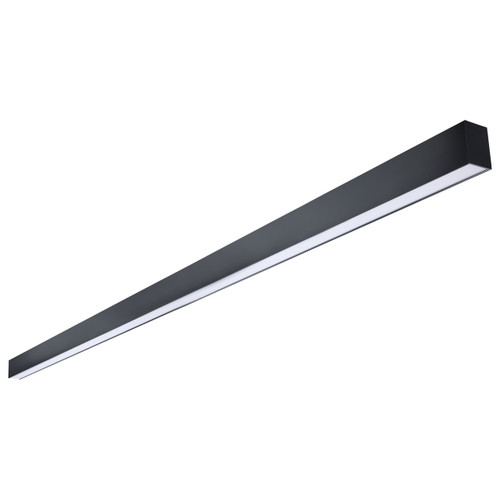

The Satco Momentum 65-1282 is an 8-foot integrated, connectable LED linear strip engineered to simplify long-run installations in commercial and retail spaces. Its up-and-down selectable illumination, selectable color temperatures, and built-in surge protection reduce install time and ongoing maintenance while delivering consistent, high-output lighting.
KEY FEATURES:
- Connectable Runs: Link multiple 8ft modules for continuous lighting runs; supports high cumulative loads with published max wattage limits.
- Selectable Output & Color: True wattage selectable (60W / 80W / 100W) and CCT selectable between 3000K, 4000K, and 5000K to match task or ambient needs.
- Dimmable Control: 0-10V dimming provides smooth brightness adjustment for energy savings and occupant comfort.
- Built-In Protection: Integrated 2KV surge protection helps guard installations against transient events.
- Long Life: Rated for 50,000 hours with a 5-year warranty for reduced maintenance cycles.
APPLICATIONS:
- Ideal for commercial ceilings and continuous runs in retail environments.
- Well suited for office spaces and open-plan work areas requiring even linear illumination.
- Appropriate for light-industrial or back-of-house areas where damp-rated fixtures are required.
- Tip: Combine modules for long continuous runs but observe the max wattage when connected per circuit (see specifications).
SPECIFICATIONS:
- Wattage: 60W / 80W / 100W (True Wattage Selectable)
- Lumens: 6,600L / 8,800L / 11,000L
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- CRI: 80+
- Voltage: 120V-347V
- Power Factor: 0.93
- Beam Angle: 120°
- Hours Rated: 50,000
- Dimmable: Yes — 0-10V
- Surge Protection: Built-in 2KV
- Operating Temp: -20C (-4F) to +45C (+113F)
- Finish: Black
- Length: 94.29 in (8 ft)
- Material: Steel
- Fixture Type / Shape: Integrated LED Linear Strip
- Max Wattage When Connected: 700W (120V); 1400W (277V); 1700W (347V)
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC: Approved (DLC ID S-L2HDGG)
- Safety Listing: cETLus
- FCC Compliant: True
- RoHS Compliant: Yes
- Location Rating: Damp
- Title 20 / CA Info: T20 Exempt - Fixtures Not Regulated; Lawful For Sale In California
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
