Description

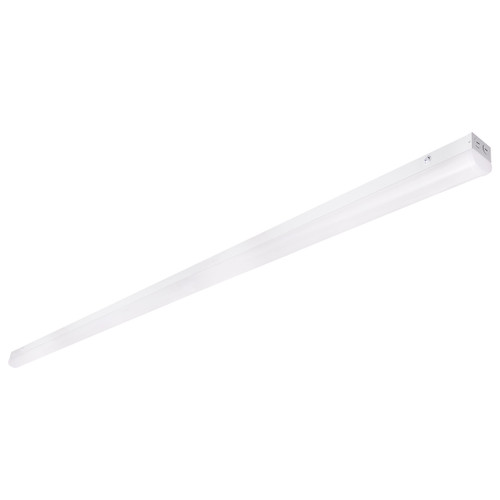

8-Foot LED Linear Strip Fixture With Integral Motion Sensor And Selectable 30/40/50W Output | Damp Location Utility Lighting
Purpose-built for utility, warehouse, and garage installations, this 8 ft. Satco LED linear strip replaces legacy fixtures with an energy-saving, low-maintenance solution. Selectable wattage and color temperatures plus integrated motion sensing and 0-10V dimming simplify inventory and speed up retrofits while delivering consistent, flicker-free illumination.
KEY FEATURES:
- Selectable Output & Tone: Choose 30W/40W/50W and 3500K/4000K/5000K to match task lighting needs and reduce SKUs.
- Integrated Motion Detection: Built-in microwave motion/bi-level control saves energy in intermittent-use spaces.
- Controls Ready: 0-10V dimming and bi-level capability enable seamless integration with building controls.
- Durable Construction: Steel housing with polycarbonate lens and built-in 2kV surge protection for reliable operation.
- Long-Life Performance: Rated for 50,000 hours with flicker-free output and stable lumen maintenance.
APPLICATIONS:
- Ideal for warehouses, utility rooms, and parking garages where robust, continuous lighting is required.
- Suitable for commercial back-of-house, stairwells, and maintenance areas seeking energy savings.
- Works well in retrofit runs and new builds needing selectable lumen packages and motion control.
- Installation Tip: Use the selectable wattage and CCT to match existing lighting runs and minimize visual variances.
SPECIFICATIONS:
- Wattage: 30W / 40W / 50W (Selectable)
- Lumens: 3,900 - 6,750
- Color Temperature: 3500K / 4000K / 5000K
- CRI: 80+
- Voltage: 120V-277V
- Power Factor: 0.9
- Beam Angle: 120°
- Rated Life: 50,000 hours
- Dimming: 0-10V Dimming Only; Bi-Level Dimmable
- Finish / Material: White / Steel housing with Polycarbonate lens
- Operating Temp: -20°C (-4°F) to +60°C (+140°F)
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC: S-YVM4W9; S-RH9PMZ; S-9FLKU1 (DLC Approved)
- Safety Listings: cULus Certified, FCC Compliant
- Location Rating: Damp Locations (IP20)
- Features: Built-in 2kV Surge Protection; Flicker-Free
- Warranty: 5-Years
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
