Description

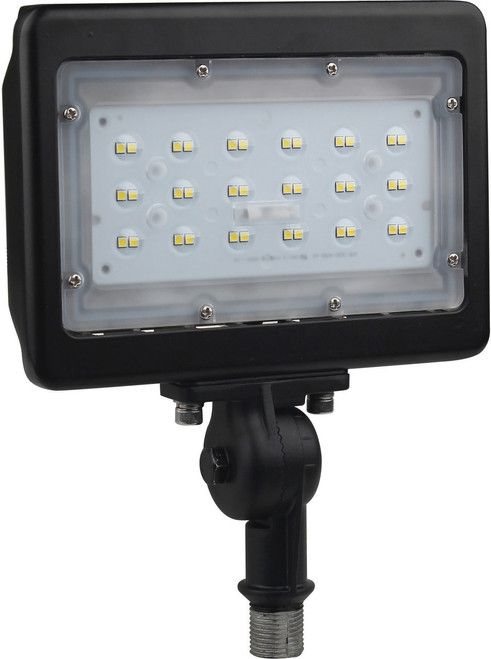

Daylight Flood Light For Outdoor Security And Perimeter Illumination | IP65 Wet-Location Fixture For Commercial Exteriors
Purpose-built for reliable perimeter and security illumination, the Satco 65-536R1 integrates a high-output LED engine into a weatherproof, low-maintenance housing. This compact bronze fixture delivers bright Daylight illumination with long life and built-in surge protection to reduce downtime and maintenance costs at commercial and residential sites.
KEY FEATURES:
- High-Output Integrated LED: Produces 4,035 lumens of Daylight illumination while consuming 30W for energy-efficient performance.
- Rugged Outdoor Construction: Die-cast aluminum housing with bronze finish and IP65 wet-location rating stands up to harsh environments.
- Dim and Control: 0-10V dimming compatible for flexible scene control and energy savings.
- Built-In Protection: Includes 2KV surge protection and a polycarbonate lens to protect optics and electronics.
- Long Service Life: Rated for 50,000 hours and backed by a 5-year limited warranty; DLC approved for quality assurance.
APPLICATIONS:
- Ideal for security lighting, perimeter illumination, and building façades.
- Well-suited for commercial exteriors such as parking areas, loading docks, and site perimeters.
- Also applicable to larger residential properties needing durable outdoor flood illumination.
- Usage Tip: Use the 1/2" knuckle mount to aim the fixture for optimal coverage while minimizing glare.
SPECIFICATIONS:
- Wattage: 30W
- Lumens: 4,035
- Color Temperature: 5000K (Daylight)
- CRI: 80+
- Voltage: 120V-277V
- Dimmable: Yes — 0-10V Dimming
- Power Factor: 0.9
- Beam Angle: 110 x 110°
- Hours Rated: 50,000
- Material: Die-cast Aluminum
- Finish: Bronze
- Lens Material: Polycarbonate (PC)
- IP Rating: IP65 (Wet Location)
- Operating Temp: -30C (-22F) to +45C (+113F)
- Surge Protection: Built-in surge protection - 2KV
- Total Harmonic Distortion: 15%
- Incandescent Equivalent: 100W-150W
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Certified
- DLC: DLC Approved
- FCC Compliant: True
- RoHS Compliant: Yes
- Location Rating: Suitable For Wet Locations
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
