Description
CCT Selectable Outdoor LED Wall Pack For Security And Perimeter Lighting | 80/100/120W High Output, IP65 Weather Resistant

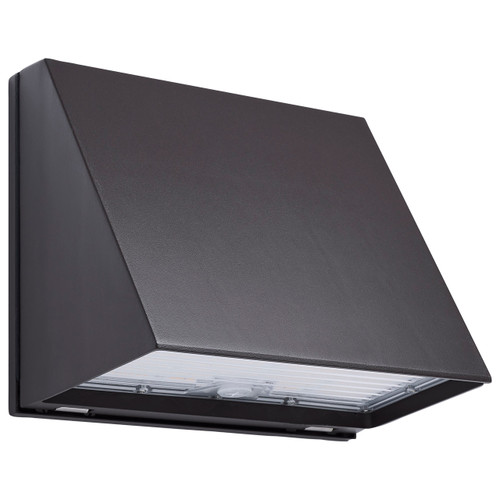

Designed for perimeter and exterior illumination, the Satco 65-556 wall pack combines field-selectable color temperature and wattage with durable, wet-location construction to simplify installs and reduce inventory needs for contractors and facility managers.
KEY FEATURES:
- Field-Selectable Flexibility: Select 3000K, 4000K, or 5000K CCT and 80W/100W/120W output on site for tailored light levels.
- High Output Performance: Integrated LED delivers robust lumen output for security and area lighting applications.
- Rugged Outdoor Ready: IP65-rated die-cast aluminum housing with polycarbonate lens stands up to wet locations and harsh environments.
- Control Ready: 0-10V dimming and a bypassable photo cell enable easy integration with site controls and schedules.
- Protected And Reliable: Built-in 6KV surge protection and >0.9 power factor for stable long-term operation.
- Long Life & Coverage: Rated for 50,000 hours and backed by a 5-year warranty.
APPLICATIONS:
- Ideal for building facades and exterior wall illumination where reliable security lighting is required.
- Well suited for loading docks, service entrances, and commercial property perimeter lighting.
- Perfect for parking area perimeters, walkways, and utility areas needing high-output, low-maintenance fixtures.
- Usage Tip: Use the built-in bypassable photocell to coordinate dusk-to-dawn operation or bypass it for centralized control systems.
SPECIFICATIONS:
- Wattage: 80W/100W/120W
- Lumens: 12107L-17789L
- Color Temperature: 3000K/4000K/5000K (Field Selectable)
- CRI: 80+
- Beam Angle: 106°
- Voltage: 120V-347V
- Power Factor: >0.9
- Total Harmonic Distortion: <20%
- Dimmable: Yes (0-10V)
- Photo Cell: Yes - Bypassable
- IP Rating: IP65
- Operating Temperature: -40C (-40F) to +50C (+122F)
- Material: Die-cast Aluminum
- Lens Material: Polycarbonate (PC)
- Finish: Bronze
- Surge Protection: Built-in surge protection - 6KV
- Hours Rated: 50000
- HID Equivalent: 400W
- Fixture Type: Wall Pack
- Lamp Type: Integrated LED
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus
- DLC: Approved
- FCC: Compliant
- RoHS: Compliant
- Location Rating: Wet
- CA Status: Lawful for sale in California
