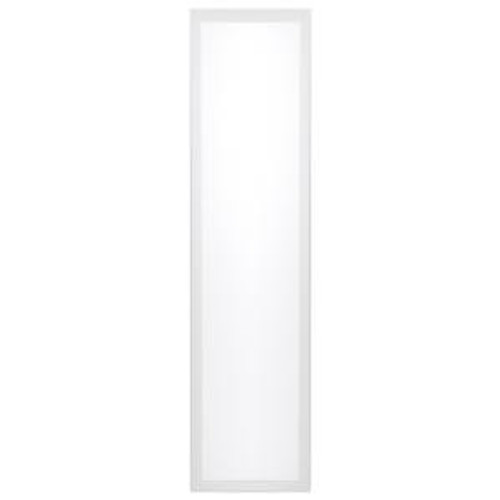

Slim 1x4 Backlit LED Flat Panel With Emergency Backup | CCT Selectable | 0-10V Dimming | Drop Ceiling Retrofit
Upgrade grid ceilings with a versatile flat panel that installs cleanly, reduces maintenance, and keeps critical spaces illuminated during outages. This 1x4 backlit design offers field-adjustable wattage and color, smooth 0-10V dimming, and flicker-free performance—ideal for modernizing offices, classrooms, and healthcare environments.
KEY FEATURES:
- Selectable Output: Field-adjustable wattage and CCT for tailored light levels and visual comfort.
- Emergency Readiness: Integrated EM backup provides continued illumination during power loss.
- Smooth Control: 0-10V dimming supports precise brightness adjustments for any task.
- Low Profile: 3.09-inch depth fits shallow plenums and standard grid ceilings.
- Built to Last: Flicker-free driver, 2kV surge protection, and durable PMMA lens.
APPLICATIONS:
- Offices and conference rooms
- Classrooms and educational facilities
- Healthcare corridors and exam areas
- Usage Tip: Set the wattage selector for target light levels, then fine-tune with 0-10V dimming.
SPECIFICATIONS:
- Fixture Type: Backlit Flat Panel
- Size:
- Finish: White
- Wattage: 20W/30W/40W (field selectable)
- Lumen Output: 2,200–4,600 lumens
- Color Temperature: 3500K/4000K/5000K (selectable)
- CRI: 80+
- Voltage: 100–277V
- Beam Angle: 120°
- Rated Hours: 50,000
- Operating Temperature: -17°C (+1.4°F) to +45°C (+113°F)
- Dimmable: Yes, 0-10V only
- Photocell or Sensor: No Photocell
- Lens Material: PMMA (Poly methyl methacrylate)
- Surge Protection: 2 kV (built-in)
- Weight: 4.98 lb
- Material: Aluminum / Steel
- Dimensions (H x W x L): 3.09 in x 11.84 in x 47.72 in
- IP Rating: IP20
- Location Rating: Damp
- IC Rated: Yes
- Air Tight Rated: No
- DLC Approved: Yes (DLC ID: S-HLPDJ6)
- NSF Approved: Yes
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Flicker Free: Yes
- California Title 20/24 Status: Lawful for sale
- California Prop 65: Lead
- Smart Product (IoT Enabled): No
- Warranty: 5-year limited (fixtures)
