Description

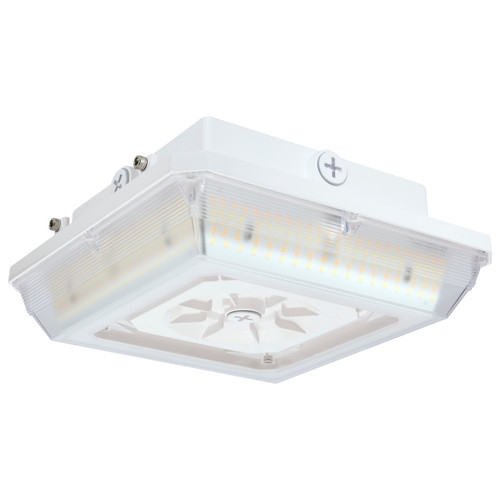

Low-Profile Square Canopy Fixture For Exterior Entry And Security | Soft White To Daylight | 0-10V Dimmable IP65 Wet Rated
Ideal for upgrading exterior entryways and covered loading areas, this Satco integrated LED canopy delivers selectable color temperatures and multiple wattage options in a weatherproof, low-profile housing. Built for quick installation and long service life, it reduces maintenance while providing consistent, glare-controlled illumination in wet locations.
KEY FEATURES:
- CCT & Wattage Flexibility: Selectable 3000K/4000K/5000K color temperatures and 20W/30W/45W wattage options to match site requirements.
- Dimming: 0-10V dimming compatible for smooth, adjustable light levels and energy savings.
- Rugged Construction: Die-cast aluminum housing with a white finish and polycarbonate lens for durable outdoor performance.
- Wet-Rated: IP65 rated for wet locations, suitable for exterior canopies and covered walkways.
- Integrated Features: Built-in surge protection (2.5KV), integrated DC sensor port, and optional photocell add-on.
- Long Life: Rated for 50,000 hours with CRI 80+ and lumen output range of 2,663 to 6,288 lumens.
APPLICATIONS:
- Ideal for exterior entryways and building canopies where durable, wet-location lighting is required.
- Well suited for parking garages, covered walkways, and gas station canopies needing uniform illumination.
- Also appropriate for loading docks and service area overhead lighting.
- Installation Tip: Recommended mounting height is 9 to 15 feet for optimal light distribution.
SPECIFICATIONS:
- Wattage: 20W / 30W / 45W (Selectable)
- Lumens: 2,663L - 6,288L
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- CRI: 80+
- Beam Angle: 190°
- Rated Life: 50,000 hours
- Input Voltage: 120V - 277V
- Power Factor: >0.9
- Total Harmonic Distortion: <20%
- Dimming: 0-10V Dimmable
- Lens Material: Polycarbonate (PC)
- Housing Material: Die-Cast Aluminum
- Finish: White
- Operating Temp: -40°C to +50°C (-40°F to +122°F)
CERTIFICATIONS & ADDITIONAL NOTES:
- Location Rating: IP65, Wet Location
- Safety Listing: cULus Certified
- DLC: DLC Approved (ID: S-32C65E)
- Warranty: 5-Years
- Additional: Built-in 2.5KV surge protection; optional photocell available; hinged door for ease of installation.
