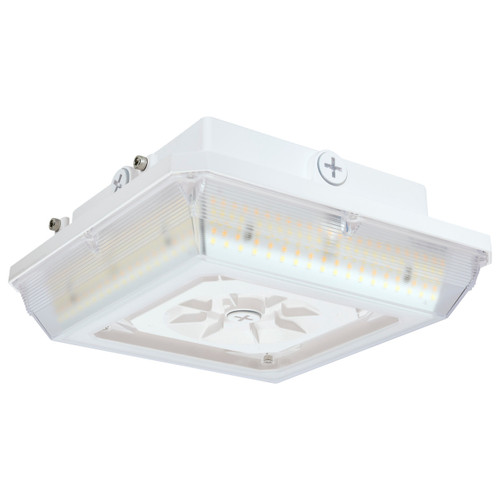

Outdoor Square Canopy LED Fixture With IP65 Wet Rating And 0-10V Dimming | Wattage Adjustable For Garages, Canopies And Walkways
This integrated LED canopy delivers flexible, low‑maintenance exterior illumination for canopies, parking structures, and building entrances. With selectable wattage and color temperature plus IP65 protection and 0-10V dimming, it simplifies stocking and field adjustments while reducing energy and service costs.
KEY FEATURES:
- Selectable Output: Field‑selectable 60W / 75W / 90W options let installers balance brightness and energy use without changing fixtures.
- Adjustable Color: Three CCT choices (3000K / 4000K / 5000K) enable on‑site tuning for security, retail, or canopy environments.
- Weather Resistant: IP65 housing and built‑in 6kV surge protection provide dependable outdoor performance in wet locations.
- Energy Savings: Integrated LED design and high efficacy reduce maintenance and lower operating costs versus HID equivalents.
- Controls Ready: 0-10V dimming and integrated DC sensor port support dimming and occupancy or control options for additional savings.
APPLICATIONS:
- Ideal for parking garage ceilings and drive‑through canopies where wide, even illumination is required.
- Designed for storefront overhangs, walkways, and building entryways needing durable outdoor lighting.
- Well suited for commercial and retail perimeter lighting where selectable output and color improve site tailoring.
- Installation Tip: Mount at the recommended 15 to 20 feet for optimal coverage and fixture performance.
SPECIFICATIONS:
- Wattage: 60W / 75W / 90W (Selectable)
- Lumens: 7,920L - 12,557L
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Dimmable: Yes; 0-10V Dimming
- Hours Rated: 50,000
- Voltage: 120V-277V
- Power Factor: >0.9
- Beam Angle: 190°
- Amps: 0.500-0.217 / 0.625-0.271 / 0.750-0.325A
- Operating Temp: -40°C to +50°C
- IP Rating: IP65 (Wet Location)
- Finish: White
- Material: Die‑cast Aluminum
- Lens Material: Polycarbonate (PC)
- Fixture Shape: Square
- Incandescent Equivalent: 300W
- Integrated Features: Integrated DC Sensor Port; Photo Cell Optional Add‑On
- Surge Protection: Built‑in 6KV
- Total Harmonic Distortion: <20%
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Certified
- FCC: FCC Compliant
- RoHS: RoHS Compliant
- DLC: DLC Approved
- CA Status: T20 Exempt - Fixtures Not Regulated; Lawful for sale in California
- Warranty: 5-Years
