Description

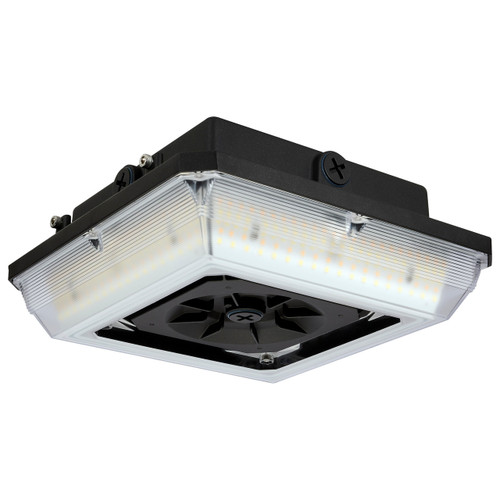

CCT Selectable Square Canopy Fixture For Outdoor Security And Parking Garages | 60/75/90W Selectable Dimmable With Surge Protection
Purpose-built for outdoor canopies, parking garages, and perimeter security, this Satco fixture simplifies upgrades by combining selectable wattages and color temperatures with rugged, wet-location performance for long-term, low-maintenance illumination.
KEY FEATURES:
- Selectable Output: Choose 60W, 75W, or 90W to match mounting height and coverage needs.
- CCT Selectable: 3000K/4000K/5000K options let you set warm to daylight tones on site for visual comfort and task clarity.
- Wet-Location Rated: IP65 housing and die-cast aluminum construction for durable outdoor performance.
- Integrated Protection: Built-in 6kV surge protection helps safeguard fixtures from transient events.
- Dimmable: 0-10V dimming support for energy control and integration with building systems.
- Installation Friendly: Hinged door and integrated DC sensor port simplify mounting and accessory additions.
APPLICATIONS:
- Ideal for parking garages, covered walkways, and fuel canopy lighting.
- Well suited to building entrances, loading docks, and perimeter security illumination.
- Commercial and industrial outdoor canopies where durable, high-output LED lighting is required.
- Installation Tip: Mount at 15 to 20 feet for optimal area coverage and uniformity.
SPECIFICATIONS:
- Wattage: 60W / 75W / 90W (Selectable)
- Lumens: 7,920 - 12,557 lm
- Beam Angle: 190°
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- CRI: 80+
- Voltage: 120V-277V
- Power Factor: >0.9
- Operating Temp: -40°C to +50°C (-40°F to +122°F)
- Hours Rated: 50,000
- Material: Die-cast Aluminum housing with Polycarbonate lens
- Finish: Bronze
- Fixture Shape: Square Canopy
- Integrated Features: Integrated LED, Integrated DC Sensor Port, Photocell Optional Add-On
- Surge Protection: Built-In 6KV
- Incandescent Equivalent: 300W
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Certified
- Location Rating: IP65, Wet Location
- DLC: Approved True
- RoHS Compliant: Yes
- Warranty: 5-Years
- Installation Notes: Hinged door for ease of installation; Recommended mounting height: 15 to 20 feet.
