8' Field-Selectable LED Linear Fixture For Commercial Spaces | Daylight 5000K Option With 0-10V Dimming

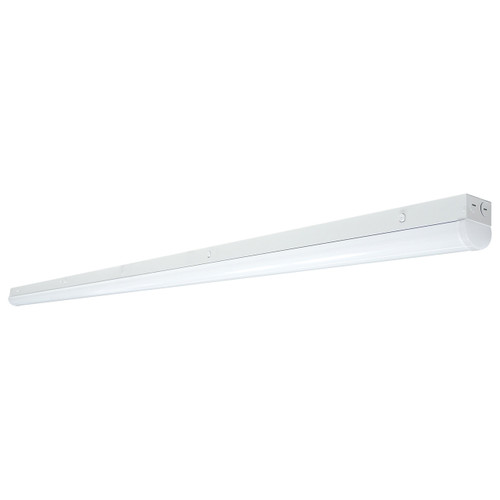

The Satco 65-703R1 is a versatile 8-foot integrated LED strip designed to simplify commercial lighting upgrades by offering field-selectable color temperatures, selectable wattages, and smooth 0-10V dimming for reduced energy use and lower maintenance compared with legacy fixtures.
KEY FEATURES:
- Field-Selectable CCT: Choose 3500K, 4000K, or 5000K on-site to match space needs without changing fixtures.
- Selectable Wattages: 60W / 70W / 80W options allow lumen output customization for aisles, retail, or utility areas.
- 0-10V Dimmable: Smooth dimming control enables task tuning and additional energy savings.
- Durable Construction: Steel housing with polycarbonate lens and built-in 3KV surge protection for reliable performance.
- Long Life & Low Maintenance: Integrated LED rated 50,000 hours reduces relamping and downtime.
APPLICATIONS:
- Ideal for commercial ceiling runs in warehouses, retail spaces, and workshops.
- Well suited for office backrooms, utility rooms, and service corridors requiring consistent illumination.
- Good choice for renovation projects where selectable lumen output and color tuning simplify specification.
- Installation Tip: Use continuous row mounting and 0-10V controls for uniform light levels and added energy savings.
SPECIFICATIONS:
- Wattage: 60W / 70W / 80W
- Lumens: 7,800L - 11,200L
- Color Temperature: 3500K / 4000K / 5000K
- CRI: 80+
- Dimmable: Yes - 0-10V Dimming Only
- Hours Rated: 50,000
- Voltage: 120V - 347V
- Power Factor: 0.9
- Finish: White
- Lens Material: Polycarbonate (PC)
- Beam Angle: 120°
- Operating Temp: -20C (-4F) to +60C (+140F)
- IP Rating: IP20
- Location Rating: Damp
- Surge Protection: Built-in 3KV
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Certified
- DLC Approved: True
- FCC Compliant: True
- ROHS Compliant: Yes
- California Compliance: T20 Exempt - Fixtures Not Regulated; Lawful for sale in California
