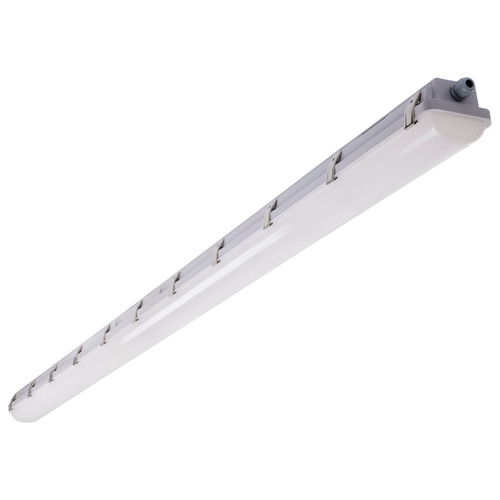

8-Foot Vapor-Tight LED Fixture For Wet Locations | CCT Selectable Commercial Linear Lighting With Integrated Motion Sensor
Engineered for durable, low-maintenance illumination in demanding wet and industrial environments, this 8-foot vapor-tight linear LED delivers selectable color temperature and wattage with an integrated microwave motion sensor to reduce energy use and maintenance downtime.
KEY FEATURES:
- CCT & Wattage Selectable: Choose 3000K/4000K/5000K and 50W/60W/72W outputs on a single fixture for installation flexibility.
- Integrated Microwave Sensor: Built-in motion detection enables occupancy-based control and bi-level dimming to boost efficiency.
- Wet-Location Rated: IP65 and IK08 protection for dependable performance in wet, dusty, and impact-prone areas.
- Wide Voltage Range: 120V–347V operation simplifies wiring across commercial and industrial sites.
- Long Life & Warranty: Rated for 50,000 hours with a 5-year limited warranty for reduced replacement costs.
APPLICATIONS:
- Ideal for parking garages, loading docks, and industrial warehouses requiring wet-location lighting.
- Suitable for cold-storage and manufacturing areas thanks to -40°C to +45°C operating range.
- Works well for exterior canopy runs and service corridors where vandal-resistant fixtures are needed.
- Usage Tip: Combine the integrated sensor with 0-10V controls for bi-level dimming scenes and maximum energy savings.
SPECIFICATIONS:
- Wattage: 50W / 60W / 72W (Selectable)
- Lumens: 6,400L - 9,360L
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: 80+
- Rated Life: 50,000 hours
- Voltage: 120V - 347V
- Dimmable: 0-10V; Bi-Level Dimmable
- Beam Angle: 120°
- Power Factor: >0.96
- Total Harmonic Distortion: 14.20%
- Operating Temperature: -40°C to +45°C
- IP / IK Rating: IP65 / IK08
- Lens Material: Polycarbonate (PC)
- Finish: Gray
- Fixture Length: 96.46 inches (8 ft)
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- DLC: DLC Approved
- NSF: Approved
- RoHS / FCC: RoHS Compliant; FCC Compliant
- Location Rating: Suitable For Wet Locations
