Description

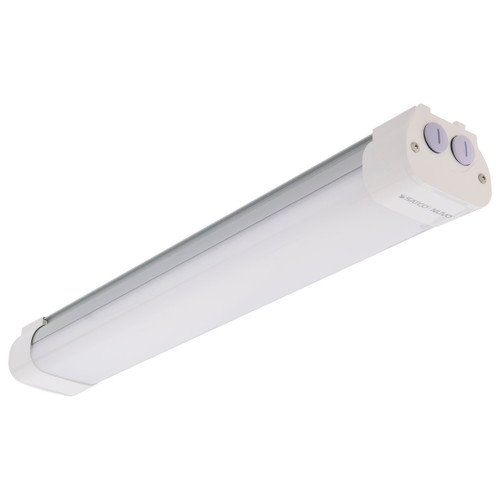

2ft Tri-Proof Vapor-Tight LED Fixture With Switchable Soft White To Daylight | Wet-Rated, 0-10V Dimming For Warehouses & Garages
Built for wet and industrial environments, the Satco 65-830R1 2ft tri-proof LED delivers durable, switchable color-temperature illumination with integrated surge protection and long rated life—reducing maintenance and improving visibility in warehouses, garages, and food-prep areas.
KEY FEATURES:
- Vapor-Tight Durability: IP65 and IK08 ratings protect against moisture and impact for reliable outdoor/indoor use.
- Switchable Color Temperatures: Select between 3000K, 4000K, and 5000K to match task requirements and visual comfort.
- Integrated Dimming: 0-10V dimming support enables energy savings and flexible light levels.
- Wide Voltage Range: Operates on 120V–347V for simplified installation in commercial electrical systems.
- Energy Efficient: Consumes 20W while delivering 2,065–2,249 lumens for high-performance illumination.
- Long Life & Reliability: Rated 50,000 hours with built-in 2KV surge protection and >0.96 power factor.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring durable linear illumination.
- Perfect for parking garages, service bays, and maintenance areas where wet-rated fixtures are needed.
- Suitable for food-prep and cold storage areas (NSF Approved) needing easy-to-clean, sealed fixtures.
- Usage Tip: Use the 0-10V dimming to lower light levels during off-peak hours and extend fixture life.
SPECIFICATIONS:
- Wattage: 20W
- Lumens: 2,065–2,249
- Color Temperature: 3000K / 4000K / 5000K (Switchable)
- CRI: 80+
- Beam Angle: 115°
- Voltage: 120V–347V
- Power Factor: >0.96
- Total Harmonic Distortion: 10.60%
- Hours Rated: 50,000
- Lens Material: Polycarbonate (PC)
- Finish: White / Gray
- Fixture Shape: Linear
- Operating Temperature: -40°C to +45°C
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cETLus - Listed
- Energy Listings: DLC Approved
- NSF: NSF Approved
- IP/IK Ratings: IP65, IK08
- Warranty: 5-Years
- Additional: Built-in 2KV surge protection; Flicker Free: False per spec sheet.
