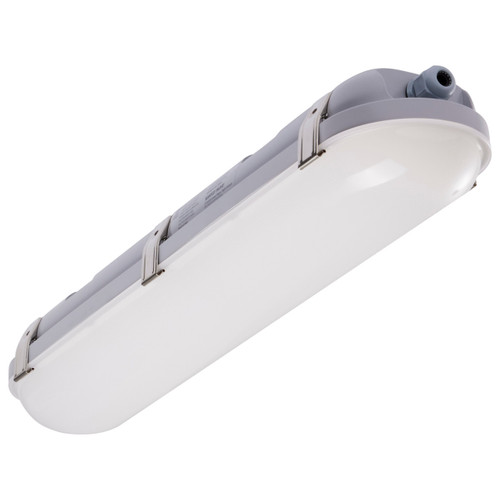

2-Foot Vapor-Tight LED Fixture For Wet Locations With 0-10V Dimming And 90 Min Backup | Soft White 3000K To Daylight 5000K
Purpose-built for wet-area upgrades and low-maintenance installations, this 2-foot vapor-tight fixture delivers dependable, energy-saving illumination with selectable color temperatures and integrated emergency runtime to keep critical areas lit during outages.
KEY FEATURES:
- Selectable Color Temps: Switch between Soft White 3000K, Cool White 4000K and Daylight 5000K to match the application.
- Emergency Ready: Integrated 90 Minute Battery Backup Runtime provides temporary illumination during power interruptions.
- Wet-Location Durability: IP65 vapor-tight design with polycarbonate lens and gray PC housing resists moisture and dust.
- Energy Efficient & Dimmable: 20W integrated LED with 0-10V dimming offers smooth dimming and reduced energy use.
- Robust Electrical Performance: Built-in 2KV surge protection, >0.96 power factor, and wide 120–347V input range.
APPLICATIONS:
- Ideal for parking garages, covered walkways, and exterior service corridors.
- Well-suited for industrial facilities, warehouses, and maintenance areas requiring wet-location fixtures.
- Great for retrofit projects replacing 50W–125W HID or incandescent fixtures.
- Usage Tip: Pair with 0-10V controls for optimized energy savings and smooth dimming performance.
SPECIFICATIONS:
- Wattage: 20W
- Lumens: 2,164–2,505
- Color Temperature: 3000K / 4000K / 5000K (Selectable)
- CRI: 80+
- Voltage: 120–347V
- Dimmable: 0-10V Dimming
- Hours Rated: 50,000
- Power Factor: >0.96
- THD: 10.30%
- Operating Temp: -40C to +45C
- IP Rating: IP65
- Lens Material: Polycarbonate (PC)
- Finish: Gray
- Length: 25.2 in
- Weight: 3.6 lb
- Battery Backup: 90 Minute Runtime
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- DLC: Approved
- NSF: Approved
- Warranty: 5-Years
