Description

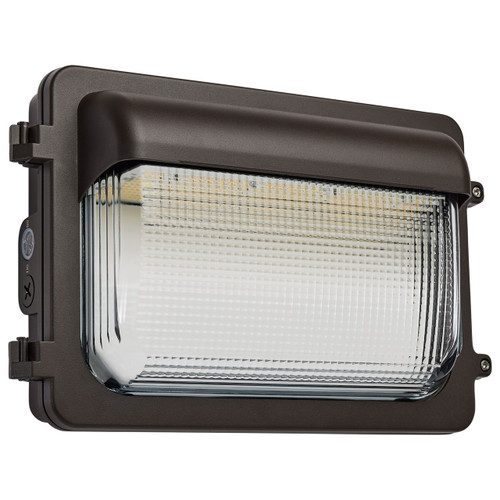

Photocell LED Wall Pack For Outdoor Security | Soft White 3000K • Cool White 4000K • Daylight 5000K | 0-10V Dimming
Designed for dependable exterior illumination, this low-profile LED wall pack simplifies upgrades for commercial and residential building exteriors by combining selectable light tones, integrated photocell dusk-to-dawn control, and 0-10V dimming for flexible, energy-saving operation.
KEY FEATURES:
- Selectable Output: True wattage selectable between 30W, 45W, and 60W to match site lighting and energy targets.
- CCT Options: Choose from 3000K, 4000K, or 5000K to balance comfort and visibility for different exterior applications.
- Integrated Controls: Built-in photocell enables automatic dusk-to-dawn operation; compatible with 0-10V dimming for additional control.
- Wet-Location Durability: IP65 rated die-cast aluminum housing with borosilicate glass lens protects performance in harsh outdoor conditions.
- Reliable Performance: Long life design rated 50,000 hours with surge protection (4KV) and power factor >0.9 to reduce maintenance and downtime.
APPLICATIONS:
- Ideal for building exteriors, entryways, and perimeter security lighting.
- Suitable for commercial, industrial, and multi-family housing exteriors needing low-maintenance illumination.
- Well-suited for pathway and loading area lighting where consistent color and reliable dusk-to-dawn control are required.
- Usage Tip: Use the built-in photocell for automatic dusk-to-dawn scheduling and pair with 0-10V controls for site-specific dimming profiles.
SPECIFICATIONS:
- Wattage: 30W / 45W / 60W (Selectable)
- Lumens: 3,844 - 7,506 lm
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Hours Rated: 50,000
- Voltage: 120V-277V
- Power Factor: >0.9
- Beam Angle: 90°
- Operating Temperature: -40°C to +50°C (-40°F to +122°F)
- Material / Finish: Die-cast Aluminum, Bronze Finish
- Lens: Borosilicate Glass
- Dimming: 0-10V Dimmable
- Surge Protection: Built-in 4KV
- Integrated Lamp: Yes (LED)
- Lamp Life: Integrated LED
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cETLus Listed
- DLC Status: DLC Approved
- Location Rating: IP65 Wet Location
- Warranty: 5-Years
