Description
Field-Ready Outdoor Canopy Lighting For Wet Locations With CCT Selectable And Multi-Watt 25/30/40W IP65 Bronze Housing

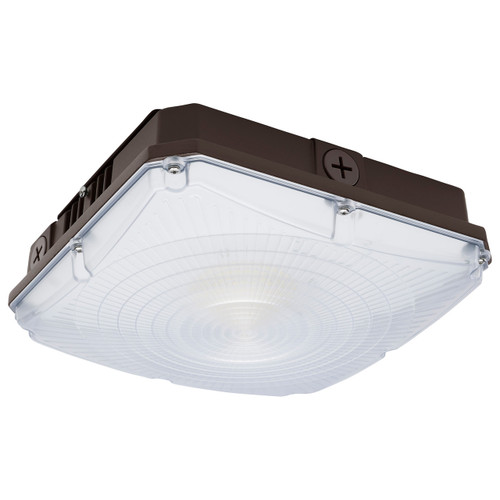

Deliver consistent, low-maintenance illumination for building canopies, walkways, and loading zones with the Satco 65-980. This compact 8.5 inch LED canopy combines selectable color temperatures and multi-watt performance to simplify inventory and give specifiers flexibility for varied outdoor applications while cutting energy and service needs.
KEY FEATURES:
- CCT Flexibility: Field-selectable color temperatures let you choose the right tone on-site for each installation.
- Multi-Watt Performance: True selectable wattages (25W / 30W / 40W) deliver lumen options for different mounting heights and tasks.
- Wet-Location Ready: IP65-rated housing with UV-stable powder-coated bronze finish for durable outdoor use.
- Integrated Durability: Die-cast aluminum construction with built-in 6kV surge protection reduces downtime and maintenance costs.
- Controls Compatible: 0-10V dimming for smooth light-level control in managed lighting systems.
APPLICATIONS:
- Ideal for exterior building canopies, gas station overhangs, and covered walkways requiring wet-location fixtures.
- Perfect for commercial entries, service bays, and perimeter lighting where durable, low-glare illumination is needed.
- Well suited for retrofit or new construction projects that benefit from selectable lumen output and color tuning.
- Installation Tip: Mount between 8–16 feet depending on desired light level and use the selectable wattage to fine-tune output.
SPECIFICATIONS:
- Wattage: 25W / 30W / 40W (True Wattage Selectable)
- Lumens: 3,125L - 5,400L
- Color Temperature: 3000K / 4000K / 5000K (Field Selectable)
- CRI: 80+
- Input Voltage: 120V-277V
- Power Factor: 0.9
- Dimming: 0-10V Dimming
- Beam Angle: 150°
- Rated Life: 50,000 hours
- Operating Temp: -30°C to +45°C (-22°F to +113°F)
- Finish: Bronze (UV Stabilized Powder Coat)
- Material: Die-Cast Aluminum, Polycarbonate Lens
- Fixture Shape / Size: Square, 8.5 Inch
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Certified
- Compliance: DLC Approved; ROHS Compliant; FCC Compliant
- Location Rating: Wet Location (IP65)
- Surge Protection: Built-In 6kV
